產品詳情介紹
訂貨型號 | 替代型號 | Profile | Gender | Pin/Dielectric Diameters(inch) | Max. Frequency |
C-1092-04A-9 | 1092-04A-9 | Narrow | Female | 0.005/0.03 | 40 GHz |
C-1092-03A-9 | 1092-03A-9 | 0.007/0.03 | |||
C-1092-02A-9 | / | 0.007/0.03 | |||
C-1092-01A-9 | 1092-01A-9 | 0.01/0.05 | |||
C-1093-04A-9 | 1093-04A-9 | Male | 0.005/0.03 | 40 GHz | |
C-1093-03A-9 | 1093-03A-9 | 0.007/0.03 | |||
C-1093-02A-9 | / | 0.007/0.03 | |||
C-1093-01A-9 | 1093-01A-9 | 0.01/0.05 |

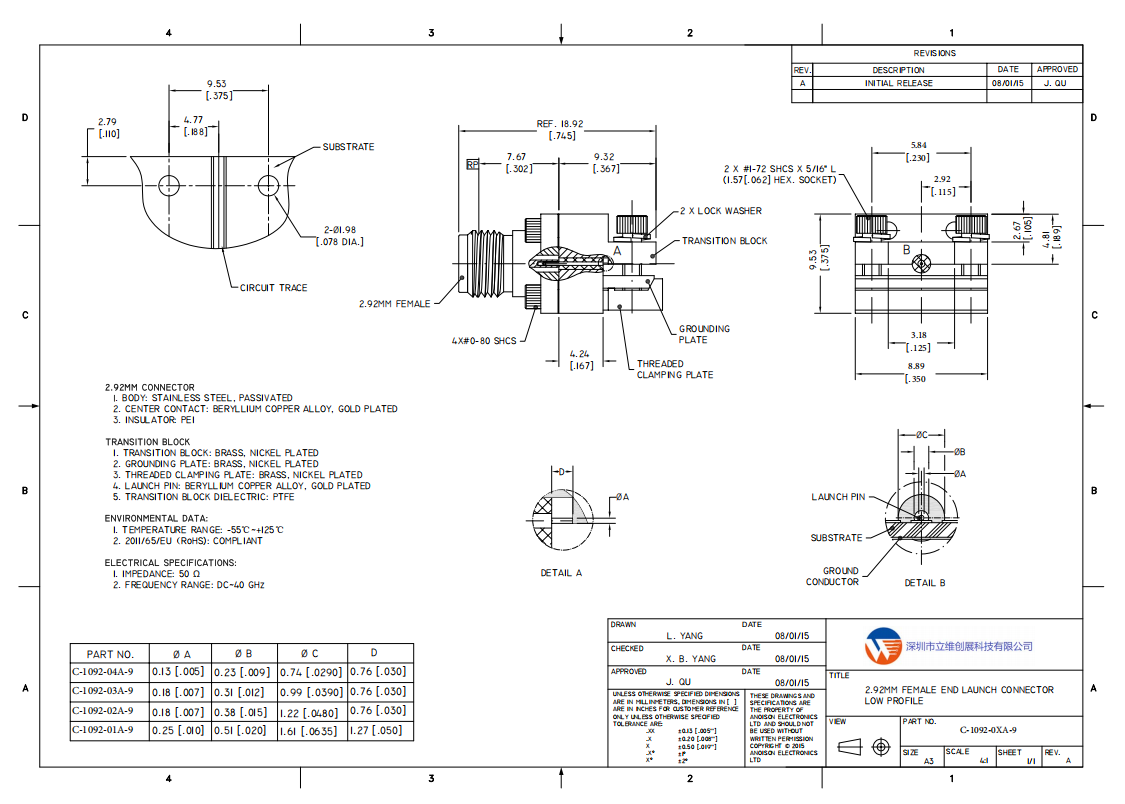

C-1092-0XA-9 產品規格書下載
全系列End launch規格書下載
