產品詳情介紹

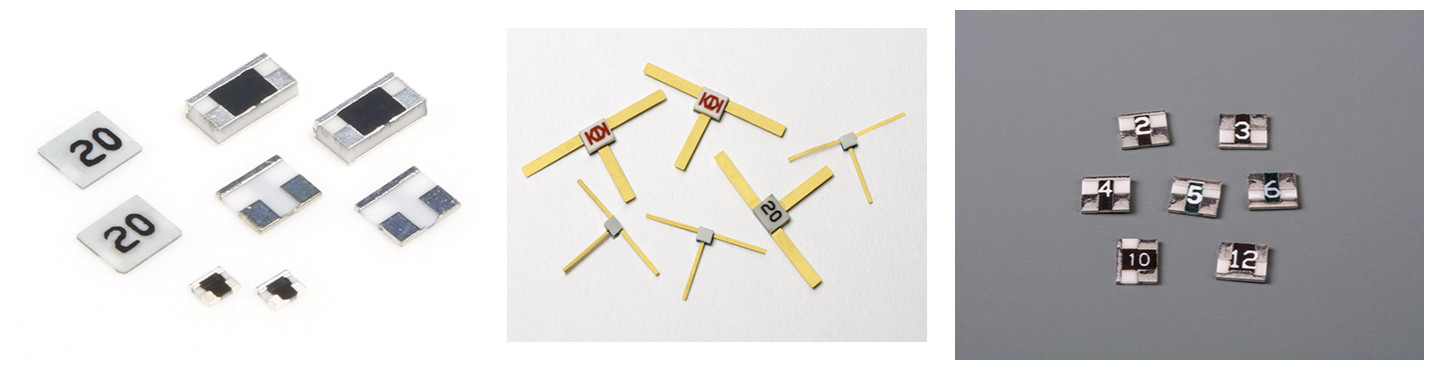

API Tech 品牌提供貼片式負載器件，功率高達250W
Available Pill Terminations
Datasheet | Power | Frequency | VSWR | Ceramic | Resistive | Diameter | Width | Height |
PST-1 | 1 | 18 | 1.5 | BeO | Thin | 0.250 | 0.060 | 0.125 |
PST-2 | 3 | 18 | 1.5 | BeO | Thin | 0.250 | 0.060 | 0.125 |
PST-5 | 1 | 6 | 1.5 | Alumina | Thin | 0.250 | 0.030 | 0.075 |
PST-62 | 1 | 18 | 1.5 | Alumina | Thin | 0.250 | 0.030 | 0.125 |
Available Pill Attenuators
Datasheet | Power | Frequency | VSWR | Ceramic | Resistive | Diameter | Width | Height |
PSA | 1 | 12 | 1.5 | Alumina | Thin | 0.250 | 0.060 | 0.125 |
Available Stripline Flange Terminations
Datasheet | Power | Frequency | VSWR | Ceramic | Resistive | Diameter | Width | Height |
PFT500-10W | 10 | 18 | 1.5 | BeO | Thin | 0.500 | 0.050 | 0.050 |
PFT500-1W | 1 | 27 | 1.5 | Alumina | Thin | 0.500 | 0.050 | 0.050 |
