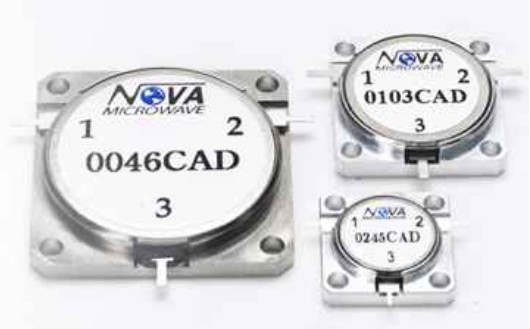

0.450- 1.710 GHz插入式循環器NOVA射頻微波
發布時間：2024-10-17 17:13:15 瀏覽：560
NOVA射頻微波提供0.450- 1.710 GHz插入式循環器，主要用于連接通信網絡技術應用，國防軍事應用，蜂窩網絡和無線行業市場。為了保障磁場穩定性并且不會隨溫度變化，在進行檢測之前，所有插入式循環器的工作溫度為-20℃+85℃。NOVA射頻微波可根據需求提供具備相位匹配，逆時針旋轉及其所要求的互調規格的插入式循環器。
深圳市立維創展科技是NOVA射頻微波的經銷商，主要提供各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
Product | Forward Power (W) | Reverse Power (W) | Frequency (GHz) | Min Isolation (dB) | Max Insertion Loss (dB) | VSWR (max) | Temperature (C) | Dimm (mm) |
0046CAD | 250 | 250 | 0.450-0.470 | 22 | 0.4 | 1.2 | -20+85 | 38.100 x 38.100 x 8.382 |
0048CAD | 250 | 250 | 0.450-0.500 | 20 | 0.5 | 1.25 | -20+85 | 38.100 x 38.100 x 8.382 |
0049CAD | 250 | 250 | 0.470-0.512 | 20 | 0.5 | 1.25 | -20+85 | 38.100 x 38.100 x 8.382 |
0082CAD | 150 | 150 | 0.810-0.826 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0086CAD | 150 | 150 | 0.810-0.915 | 20 | 0.35 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0084CAD | 150 | 150 | 0.824-0.849 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0088CAD | 150 | 150 | 0.860-0.904 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0091CAD | 150 | 150 | 0.880-0.940 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0092CAD | 150 | 150 | 0.890-0.960 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0094CAD | 150 | 150 | 0.915-0.964 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0100CAD | 150 | 150 | 0.980-1.020 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0103CAD | 150 | 150 | 1.000-1.060 | 20 | 0.3 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0105CAD | 150 | 150 | 1.000-1.100 | 20 | 0.3 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0106CAD | 150 | 150 | 1.030-1.090 | 22 | 0.3 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0130CAD | 150 | 150 | 1.250-1.350 | 20 | 0.3 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0150CAD | 150 | 150 | 1.400-1.600 | 20 | 0.4 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0144CAD | 150 | 150 | 1.429-1.453 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0147CAD | 150 | 150 | 1.429-1.501 | 22 | 0.35 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0149CAD | 150 | 150 | 1.477-1.501 | 22 | 0.3 | 1.2 | -20+85 | 25.400 x 25.400 x 7.620 |
0158CAD | 150 | 150 | 1.500-1.660 | 20 | 0.35 | 1.25 | -20+85 | 25.400 x 25.400 x 7.620 |
0175CAD | 125 | 125 | 1.710-1.785 | 20 | 0.3 | 1.25 | -20+85 | 19.050 x 19.050 x 5.334 |
0179CAD | 125 | 125 | 1.710-1.880 | 20 | 0.35 | 1.25 | -20+85 | 19.050 x 19.050 x 5.334 |
