Mi-Wave932-10/20/10/SMAF-2倍頻器

發布時間：2024-05-30 08:37:17 瀏覽：769

　　Mi-Wave932-10/20/10/SMAF-2倍頻器是Mi-Wave的93系列中的一款有源倍頻器，采用高性能MMIC芯片進行倍頻和放大處理。

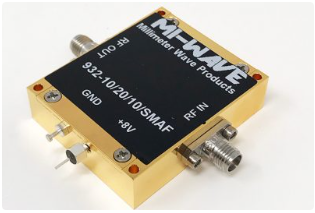

Mi-Wave932-10/20/10/SMAF-2倍頻器

　　Mi-Wave 的 93(x) 系列倍頻器具有以下特征：

　　1. 高達全波導頻段覆蓋：

　　2. 需要低輸入驅動電平：

　　3. 低次諧波：

　　4. 高輸出功率

　　應用:

　　1.測試實驗室

　　2. 子組件

　　3. 本地振蕩器

　　4. 5G和6G系統

　　產品型號：

Model Number	Input Low Frequency ÷ GHZ)	Input High Frequency÷ (GHZ)	Output Low Frequency (GHz)	Output High Frequency (GHz)	Input Power (dBm)	Output Power (dBm)	Input Port	Output + Port	DC Bias	X Factor
932- 10/20/10/SMAF- 2	5	10	10	20	+11 to 16 nominal +17 max.	+7 to +10 nomina	SMA-Feamle	SMA- Feamle	+8V@105mA,+12V max	2
932AF 20/599/KF	13.25	20	26.5	40	0 to +5 nominal, +10 max.	20 nominal	K-Female	WR-28 waveguide, UG-599/U Flange	+8 V@470mA,+15 V max	2
932KF-10/KF	9	13.25	18	26.5	+5 nominal, +10 max	+15 nomina	K-Female	K-Female	+8 V@82 mA,+15 V max	2
932KF- 30/3.5mmF	9	13.25	18	26.5	+3 to +5 nominal, +10 max.	+31 nominal	3.5 mm Female	3.5 mm Female	+6V@1.35A,+12 V max	2
934BF-10/383	8.25	12.5	33	50	+2 nominal, +5 max.	+10 nomina	K- Female/SMA- Female	WR-22 waveguide UG-383/U Flange	+8V@0.250 A,+12V max	4
934BF-13/383	8.25	12.5	33	50	0 to +2 nominal,+5 max	+14.5 nominal	K- Female/SMA- Female	WR-22 waveguide UG-383/U Flange	+8V@0.280 A,+12V max	4
934EF-20/387	15	22.5	60	90	+5 to +7 nominal +12 max.	+20 nominal	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+6 to +8V@650mA,+12V max	4
934UF-10/383	10	15	40	60	0 nominal +10max	+13 nomina	K- Female/SMA- Female	WR-19 waveguide UG-383/U- M Flange	+6V@143mA,+6V max	4
934VF-10/385	12.5	18.75	50	75	+5 nominal, +10 max	+11 nominal	K- Female/SMA- Female	WR-15 waveguide UG-385/U Flange	+8V@270mA,+15v max	4
934VF-15/385	12.5	18.75	50	75	+5 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-15 waveguide, UG-385/U Flange	+10V@321mA,+15V max	4
936EF-10/387	10	15	60	90	+4 nominal,+10 max.	+13 nominal	K- Female/SMA- Female	WR-12 wavequide UG-387/U Flange	+6V@237mA,+12V max	6
936EF-20/387H	10	15	60	90	+5 nominal, +10 max	+20 nomina	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+6V@540mA,+12V max	6
936WF-10/387	12.5	18.33	75	110	+6 nominal,+10 max	+10 nomina	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+6V@309mA,+12V max	6
936WF-15/387	12.5	18.33	75	110	+5 to+10 nominal +15 max.	+16 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+12V@500mA,+15V max	6
936WF-20/387	12.5	18.33	75	110	+5 to+10 nominal, +15 max	+20 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+13V@410mA,+15V max	6
938EF-16/387H	7.5	11.25	60	90	+3 to +5 nominal, +10 max	+17 nomina	K- Female/SMA- Female	WR-12 waveguide UG-387/U Flange	+8V@590mA,+12V max	8
938W- 80/106/15/388	8.9	11.78	80	106	+7 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-10 waveguide, UG-387/U- M Flange	+13V@180mA,+15V max	9
938WF-10/387	10	13.25	80	106	+7 nominal, +10 max	+15 nominal	K- Female/SMA- Female	WR-10 waveguide UG-387/U- M Flange	+6V@180mA,+12V max	8

深圳市立維創展科技有限公司授權代理銷售Mi-Wave毫米波產品，Mi-Wave是商用型和軍工用毫米波產品全球領航者，可以提供毫米波器件和模塊解決方案。產品線涵蓋：放大器、混頻器、衰減器、濾波器、開關、T/R、天線、反射鏡等，所包含頻率高達320GHz。歡迎咨詢。
