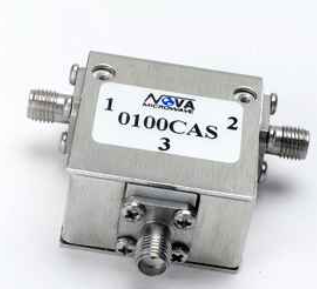

SMA同軸環行器NOVA
發布時間：2024-03-26 08:43:43 瀏覽：847
NOVA的SMA同軸環行器是業界廣泛認可的高性能產品之一。在設計階段，產品的可靠性、價格和可制造性得到了全面優化，旨在為客戶提供卓越的性能和穩定的品質。為了確保產品的穩定性和可靠性，所有的SMA同軸環行器在最終測試前都經過了嚴苛的環境溫度循環測試，測試范圍覆蓋了從-50°C至+100°C的廣泛溫度區間。
NOVA的SMA同軸環行器具有多種封裝尺寸和頻段選擇，以滿足不同應用的需求。標準配置的SMA同軸環行器配備了SMA母連接器，方便與各種設備進行連接。此外，NOVA還提供了定制服務，可以根據客戶的具體需求，提供公連接器、相位匹配、逆時針旋轉等特性，以及更高的屏蔽和所需的互調規格。
產品型號：
Product | Forward Power (W) | Reverse Power (W) | Frequency (GHz) | Min Isolation (dB) | Max Insertion Loss (dB) | VSWR (max) | Temperature (C) | Dimm (mm) |
1650CES | 20 | 20 | 15.000-18.000 | 20 | 0.5 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1850CES | 20 | 20 | 17.000-20.000 | 20 | 0.5 | 1.3 | 45 | 12.700 x 16.002 x 12.700 |
2240CES | 20 | 20 | 21.200-23.600 | 20 | 0.5 | 1.3 | 45 | 12.700 x 16.002 x 12.700 |
1240CES | 25 | 25 | 11.100-13.700 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1325CES | 25 | 25 | 11.500-15.000 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1195CES | 25 | 25 | 11.700-12.200 | 23 | 0.35 | 1.2 | 45 | 12.700 x 16.002 x 12.700 |
1295CES | 25 | 25 | 12.700-13.200 | 23 | 0.35 | 1.2 | 45 | 12.700 x 16.002 x 12.700 |
1445CES | 25 | 25 | 13.500-15.400 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1425CES | 25 | 25 | 14.000-14.500 | 23 | 0.35 | 1.16 | 45 | 12.700 x 16.002 x 12.700 |
0950CES | 25 | 25 | 8.000-11.000 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
0935CES | 25 | 25 | 9.000-9.700 | 23 | 0.35 | 1.2 | 45 | 12.700 x 16.002 x 12.700 |
1112CES | 25 | 25 | 9.500-12.750 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1000CES | 30 | 30 | 8.500-11.500 | 20 | 0.4 | 1.25 | 45 | 12.700 x 16.002 x 12.700 |
1070CES | 30 | 30 | 9.700-11.700 | 23 | 0.35 | 1.2 | 45 | 12.700 x 16.002 x 12.700 |
0380CES | 35 | 35 | 3.400-4.200 | 20 | 0.4 | 1.25 | 65 | 19.050 x 19.050 x 12.700 |
0395CES | 35 | 35 | 3.600-4.300 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0460CES | 35 | 35 | 4.200-5.000 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0500CES | 35 | 35 | 4.600-5.400 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0550CES | 35 | 35 | 5.000-6.000 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0565CES | 35 | 35 | 5.400-5.900 | 23 | 0.35 | 1.2 | 45 | 19.050 x 19.050 x 12.700 |
0625CES | 35 | 35 | 5.700-6.800 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0615CES | 35 | 35 | 5.800-6.500 | 23 | 0.35 | 1.2 | 45 | 19.050 x 19.050 x 12.700 |
0700CES | 35 | 35 | 6.000-8.000 | 20 | 0.4 | 1.25 | 45 | 19.050 x 19.050 x 12.700 |
0680CES | 35 | 35 | 6.400-7.200 | 23 | 0.35 | 1.2 | 45 | 19.050 x 19.050 x 12.700 |
0780CES | 35 | 35 | 7.200-8.400 | 23 | 0.35 | 1.2 | 45 | 19.050 x 19.050 x 12.700 |
0200CES | 50 | 50 | 1.700-2.300 | 20 | 0.4 | 1.25 | 60 | 41.402 x 41.402 x 19.050 |
0270CSS | 50 | 50 | 2.500-2.900 | 20 | 0.4 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0290CES | 50 | 50 | 2.700-3.100 | 20 | 0.4 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0305CES | 50 | 50 | 2.800-3.300 | 20 | 0.4 | 1.25 | 65 | 19.050 x 19.050 x 12.700 |
0088CAS | 150 | 150 | 0.790-0.960 | 20 | 0.4 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0100CAS | 150 | 150 | 0.900-1.100 | 20 | 0.4 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0094CAS | 150 | 150 | 0.915-0.964 | 23 | 0.35 | 1.2 | 45 | 31.750 x 31.750 x 19.050 |
0109CAS | 150 | 150 | 0.960-1.215 | 20 | 0.4 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0120CAS | 150 | 150 | 1.100-1.300 | 20 | 0.35 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0130CAS | 150 | 150 | 1.200-1.400 | 20 | 0.35 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0150CAS | 150 | 150 | 1.400-1.600 | 20 | 0.35 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0165CAS | 150 | 150 | 1.500-1.800 | 20 | 0.35 | 1.25 | 45 | 31.750 x 31.750 x 19.050 |
0185CAS | 150 | 150 | 1.700-2.000 | 20 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0195CAS | 150 | 150 | 1.800-2.100 | 20 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0196CAS | 150 | 150 | 1.930-1.990 | 23 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0215CAS | 150 | 150 | 2.000-2.300 | 20 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0225CAS | 150 | 150 | 2.100-2.400 | 20 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0250CAS | 150 | 150 | 2.300-2.700 | 20 | 0.4 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0245CAS | 150 | 150 | 2.400-2.500 | 23 | 0.35 | 1.25 | 45 | 25.400 x 25.400 x 19.050 |
0042CAS | 250 | 250 | 0.380-0.470 | 20 | 0.4 | 1.25 | 65 | 57.150 x 57.150 x 25.400 |
0045CAS | 250 | 250 | 0.400-0.500 | 20 | 0.4 | 1.25 | 65 | 57.150 x 57.150 x 25.400 |
0055CAS | 250 | 250 | 0.500-0.600 | 20 | 0.4 | 1.25 | 45 | 50.800 x 50.800 x 25.400 |
0067CAS | 250 | 250 | 0.600-0.750 | 20 | 0.4 | 1.25 | 45 | 44.450 x 44.450 x 25.400 |
0076CAS | 250 | 250 | 0.700-0.830 | 20 | 0.4 | 1.25 | 45 | 38.100 x 38.100 x 19.050 |
深圳市立維創展科技是NOVA的經銷商，主要提供NOVA的各種微帶線環形器與微帶線隔離器，產品原廠進口，極具價格優勢，歡迎咨詢。
