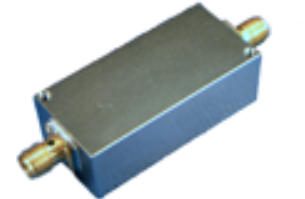

?KR Electronics低通濾波器SMD
發布時間：2023-12-28 16:56:20 瀏覽：801
低通濾波器是種數字信號處理濾波器，將控制信號通過一些濾波器，只接受某些諧振頻率之下的信號通過，通過清除高頻信號，過濾控制信號中的高頻噪音或干擾信號，從而使得輸出信號更加平整、更加穩定。這種諧振頻率一般稱為濾波器的諧振頻率或截止角頻率，一般以赫茲或弧度為單位/秒來表示。
KR Electronics低通濾波器SMD能夠利用各種電源電路去實現，包含差分放大器、運算放大器、濾波電容、功率電感等。
KR Electronics低通濾波器SMD根據客戶需求個性定制低通濾波器貼片的參數。還能通過封裝進行調整。表面貼裝型一般用于封裝形式，連接器也同樣如此。
Part Number | Cutoff
Frequency | Attenuation
at Cutoff | Stopband
Frequency | Stopband
Attenuation | Case
Style | Notes/Special Features |
3256 | 1 MHz | 1 | 1.875 MHz | 40 | SMD | 4 Filters in one Module |
2434-5 | 5 MHz | 0.5 | 10 MHz | 55 | SMD |
|
2124SMD | 5.5 MHz | 0.2 | 8 MHz | 40 | SMD | 75 Ohm
Group Delay Equalized |
2437-6.1 | 6.1 MHz | 3 | 7.625 MHz | 45 | SMD |
|
2434-6.7 | 6.7 MHz | 0.5 | 13.4 MHz | 55 | SMD |
|
2695 | 9.4 MHz | 1 | 20 MHz | 40 | SMD |
|
2969 | 10 MHz | 1 | 13.125 MHz | 84 | SMD |
|
3275 | 10 MHz | 0.5 | 20 MHz | 55 | SMD |
|
2434-10 | 10 MHz | 0.5 | 20 MHz | 55 | SMD |
|
2884+ | 11 MHz | 3 | 12 MHz | 50 | SMD |
|
3214-12+ | 12 MHz | 1 | 33 MHz | 40 | SMD |
|
2378 | 15 MHz | 0.1 | 22.275 MHz | 40 | SMD | 75 Ohm
Group Delay Equalized |
2999 | 20 MHz | 2 | 30 MHz | 60 | SMD |
|
2390 | 20 MHz | 0.1 | 29.7 MHz | 40 | SMD | 75 Ohm
Group Delay Equalized |
2434-20 | 20 MHz | 0.5 | 40 MHz | 55 | SMD |
|
2434-30 | 30 MHz | 0.5 | 60 MHz | 55 | SMD |
|
3018-1+ | 30 MHz | 1 | 70 MHz | 50 | SMD |
|
3018-2+ | 30 MHz | 1 | 37.5 MHz | 50 | SMD | Group Delay Equalized |
3195 | 30 MHz | 1 | 70 MHz | 83 | SMD |
|
3214-30+ | 30 MHz | 1 | 78 MHz | 40 | SMD |
|
2338 | 30 MHz | 0.1 | 44.55 MHz | 40 | SMD | 75 Ohm
Group Delay Equalized |
2416-32 | 32 MHz | 3 | 47.36 MHz | 50 | SMD |
|
2824 | 32 MHz | 3 | 50 MHz | 75 | SMD |
|
3254-32-LP | 32 MHz | 1.5 | 50 MHz | 60 | SMD |
|
3214-33+ | 33 MHz | 1 | 59 MHz | 40 | SMD |
|
2789-SMD | 40 MHz | 1.5 | 52.5 MHz | 84 | SMD |
|
2297-9 | 40 MHz | 0.5 | 56 MHz | 45 |
|
|
2740 | 44 MHz | 0.5 | 60 MHz | 60 | SMD |
|
2912 | 45 MHz | 0.2 | 50 MHz | 11 | SMD | Group Delay Equalized |
2455-SMD | 45 MHz | 0.5 | 60 MHz | 60 | SMD | Group Delay Equalized
Sin(x)/x |
2894 | 50 MHz | 3 | 68.5 MHz | 45 | SMD |
|
2515-S | 50 MHz | 0.25 | 73.6 MHz | 60 | SMD | Group Delay Equalized |
2403-S | 60 MHz | 0.2 | 74.25 MHz | 40 | SMD | 75 Ohm
Group Delay Equalized |
2289-75-S | 75 MHz | 4 | 87 MHz | 45 | SMD |
|
3025 | 90 MHz | 1 | 160 MHz | 60 | SMD |
|
3261 | 100 MHz | 3 | 148 MHz | 50 | SMD |
|
2416-100 | 100 MHz | 3 | 148 MHz | 50 | SMD |
|
2923-SMD+ | 110 MHz | 2.5 | 117.5 MHz | 40 | SMD |
|
2416 | 125 MHz | 3 | 185 MHz | 50 | SMD |
|
2978 | 150 MHz | 1 | 250 MHz | 70 | SMD |
|
2750 | 165 MHz | 0.75 | 225 MHz | 50 | SMD | Group Delay Equalized |
3013-1 | 185 MHz | 1 | 210 MHz | 30 | SMD |
|
3070 | 200 MHz | 3 | 250 MHz | 40 | SMD | Group Delay Equalized |
3253-201-LP | 201 MHz | 1.5 | 402 MHz | 50 | SMD |
|
3395+ | 225 MHz | 1 | 278 MHz | 40 | SMD |
|
3068 | 250 MHz | 1 | 300 MHz | 20 | SMD |
|
3086 | 250 MHz | 1 | 330 MHz | 60 | SMD | Group Delay Equalized |
2961 | 300 MHz | 1 | 500 MHz | 40 | SMD | Group Delay Equalized |
2426 | 320 MHz | 0.5 | 1000 MHz | 35 | SMD |
|
2433-400 | 400 MHz | 3 | 522 MHz | 54 | SMD |
|
2433-416 | 416 MHz | 3 | 543 MHz | 54 | SMD |
|
2738 | 420 MHz | 1.5 | 500 MHz | 35 | SMD |
|
3007+ | 430 MHz | 0.5 | 549 MHz | 20 | SMD | Group Delay Equalized
Sin(x)/x |
2927 | 440 MHz | 3 | 520 MHz | 40 | SMD |
|
3488+ | 475 MHz | 4 | 525 MHz | 60 | SMD |
|
2968+ | 475 MHz | 0.5 | 800 MHz | 55 | SMD | Group Delay Equalized
Sin(x)/x |
3255-805-LP | 805 MHz | 1.5 | 1600 MHz | 50 | SMD |
|
3307+ | 1200 MHz | 0.5 | 2000 MHz | 30 | SMD | Group Delay Equalized
Sin(x)/x |
3337+ | 1208 MHz | 2 | 1292 MHz | 18 | SMD |
|
3008 | 1250 MHz | 1 | 1600 MHz | 40 | SMD |
|
3308-1350+ | 1350 MHz | 1 | 1900 MHz | 40 | SMD |
|
3257 | 1500 MHz | 1 | 1900 MHz | 42 | SMD |
|
3441-1500+ | 1500 MHz | 3 | 6000 MHz | 30 | SMD | Linear Phase |
3308-1950+ | 1950 MHz | 1 | 2700 MHz | 40 | SMD |
|
3281 | 2750 MHz | 1 | 3900 MHz | 40 | SMD |
|
3441-3000+ | 3000 MHz | 3 | 8000 MHz | 20 | SMD | Linear Phase |
