PIN二極管Aeroflex
發布時間：2023-09-11 16:33:34 瀏覽：914
Aeroflex PIN二極管開關應用于從經濟高效率的窄帶到高性能寬帶的諸多標準化工作頻段。Aeroflex的開關使用了TTL適配控制器，可便捷地實現信息系統集成，并能夠在+5和-12V至-18V直流穩壓電源下工作。它們包括直流塊。Aeroflex支持并且提供定制開發配置，以滿足要求高隔離度、低插入損耗、快速開關速度與其它特殊需求的嚴格技術應用。

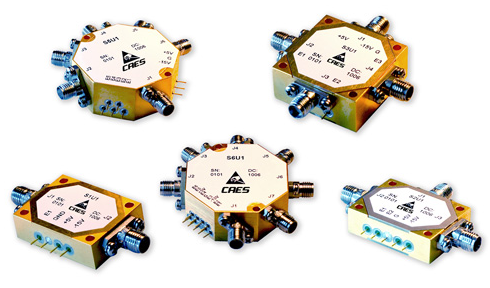

Aeroflex PIN二極管開關可用作吸收式或反射式SP1T、SP2T、SP3T、SP4T、SP5T和轉換開關，應用于10MHz至18GHz的諸多頻率段。Aeroflex的標準PIN二極管開關對于低插入損耗和VSWR、高隔離度和快速開關速度進行優化，并使用了TTL適配控制器。所有的標準化開關均具有氣密性密封和高可靠性搜索功能，應用于國防軍事和空間技術應用。
Aeroflex-API Tech公司旗下WEINSCHEL、INMET品牌，現在被API收購。Aeroflex-API Tech能夠滿足用戶對于射頻微波測試及微電子平臺的產品計劃、科技研發、生產生產以及運營維護等各個環節的多種測試需求。Aeroflex-API Tech產品應用領域包括航空航天，國防軍工，無線通訊，寬帶通訊平臺。目前，Aeroflex-API Tech產品系列衰減器、終端負載、限幅器產品一直是全球高可靠性應用市場的領導者。
深圳市立維創展科技是Aeroflex經銷商，主要提供Aeroflex原產品系列衰減器，終端負載，限幅器產品，產品原裝庫存，極具價格優勢，歡迎咨詢。
詳情了解Aeroflex-API Tech請點擊：http://www.liaoyuan999.com/brand/10.html
零件號 | 頻率范圍 (GHz) | 開關 類型 | 插入 損耗 | 駐波比 （Max） | 隔離度
（dB Min） | 開關速度
（Max nsec） | 最大射頻 (dBm) |
S1H3R | 0.01 – 1.0 | Reflective | 1.2 | 1.5 | 75 | 250 | 30 |
S1V2R | 0.1 - 1.0 | Reflective | 1.2 | 1.5 | 75 | 250 | 30 |
S1U6R | 0.5 - 18.0 | Reflective | 2.8 | 2 | 60 | 100 | 27 |
S1L1R | 1.0 - 2.0 | Reflective | 0.8 | 1.5 | 80 | 100 | 30 |
S1S1R | 2.0 - 4.0 | Reflective | 1 | 1.6 | 70 | 100 | 30 |
S1C1R | 4.0 - 8.0 | Reflective | 1.7 | 1.6 | 70 | 100 | 30 |
S1X3R | 8.0 - 18.0 | Reflective | 2.6 | 2 | 60 | 100 | 27 |
SWM-1100 | 0.5 - 18.0 | Reflective | 2.6 | 1.8 | 60 | 100 | 30 |
S2H3R | 0.01 – 1.0 | Reflective | 1.2 | 1.5 | 75 | 250 | 30 |
S2V2R | 0.1 - 1.0 | Reflective | 1.2 | 1.5 | 75 | 250 | 30 |
S2U6R | 0.5 - 18.0 | Reflective | 3 | 2 | 60 | 100 | 27 |
S2L1R | 1.0 - 2.0 | Reflective | 0.9 | 1.5 | 80 | 100 | 30 |
S2S1R | 2.0 - 4.0 | Reflective | 1.1 | 1.6 | 70 | 100 | 30 |
S2C1R | 4.0 - 8.0 | Reflective | 1.7 | 1.6 | 70 | 100 | 30 |
S2X3R | 8.0 - 18.0 | Reflective | 2.8 | 2 | 60 | 100 | 27 |
SWM-1200 | 0.5 - 18.0 | Reflective | 2.8 | 2 | 60 | 100 | 30 |
S3H3R | 0.01 – 1.0 | Reflective | 1.3 | 1.5 | 75 | 250 | 30 |
S3V2R | 0.1 - 1.0 | Reflective | 1.3 | 1.5 | 75 | 250 | 30 |
S3U6R | 0.5 - 18.0 | Reflective | 3.2 | 2 | 60 | 100 | 27 |
S3L1R | 1.0 - 2.0 | Reflective | 1 | 1.5 | 80 | 100 | 30 |
S3S1R | 2.0 - 4.0 | Reflective | 1.2 | 1.6 | 70 | 100 | 30 |
S3C1R | 4.0 - 8.0 | Reflective | 1.8 | 1.6 | 70 | 100 | 27 |
S3X3R | 8.0 - 18.0 | Reflective | 3 | 2 | 60 | 100 | 27 |
SWM-1300 | 0.5 - 18.0 | Reflective | 2.8 | 2 | 60 | 100 | 30 |
S4H3R | 0.01 – 1.0 | Reflective | 1.4 | 1.5 | 75 | 250 | 30 |
S4V2R | 0.1 - 1.0 | Reflective | 1.4 | 1.5 | 75 | 250 | 30 |
S4U6R | 0.5 - 18.0 | Reflective | 3.4 | 2 | 60 | 100 | 27 |
S4L1R | 1.0 - 2.0 | Reflective | 1.1 | 1.5 | 80 | 100 | 30 |
S4S1R | 2.0 - 4.0 | Reflective | 1.3 | 1.6 | 70 | 100 | 30 |
S4C1R | 4.0 - 8.0 | Reflective | 1.9 | 1.6 | 70 | 100 | 27 |
S4X3R | 8.0 - 18.0 | Reflective | 3.2 | 2 | 60 | 100 | 27 |
SWM-1400 | 0.5 - 18.0 | Reflective | 2.8 | 2 | 60 | 100 | 30 |
S5H3R | 0.01 – 1.0 | Reflective | 1.5 | 1.5 | 75 | 250 | 30 |
S5V2R | 0.1 - 1.0 | Reflective | 1.5 | 1.5 | 75 | 250 | 30 |
S5U6R | 0.5 - 18.0 | Reflective | 3.6 | 2 | 60 | 100 | 27 |
S5L1R | 1.0 - 2.0 | Reflective | 1.2 | 1.5 | 80 | 100 | 30 |
S5S1R | 2.0 - 4.0 | Reflective | 1.4 | 1.6 | 70 | 100 | 30 |
S5C1R | 4.0 - 8.0 | Reflective | 2 | 1.6 | 70 | 100 | 27 |
S5X3R | 8.0 - 18.0 | Reflective | 3.4 | 2 | 60 | 100 | 27 |
S6H3R | 0.01 – 1.0 | Reflective | 1.6 | 1.5 | 75 | 250 | 30 |
S6V2R | 0.1 - 1.0 | Reflective | 1.6 | 1.5 | 75 | 250 | 30 |
S6U6R | 0.5 - 18.0 | Reflective | 3.8 | 2 | 60 | 100 | 27 |
S6L1R | 1.0 - 2.0 | Reflective | 1.3 | 1.5 | 80 | 100 | 30 |
S6S1R | 2.0 - 4.0 | Reflective | 1.5 | 1.6 | 70 | 100 | 27 |
S6C1R | 4.0 - 8.0 | Reflective | 2.1 | 1.6 | 70 | 100 | 27 |
S6X3R | 8.0 - 18.0 | Reflective | 3.6 | 2 | 60 | 100 | 27 |
S1H3 | 0.01 – 1.0 | Absorptive | 1.3 | 1.5 | 80 | 250 | 30 |
S1V2 | 0.1 - 1.0 | Absorptive | 1.3 | 1.5 | 80 | 250 | 30 |
S1U6 | 0.5 - 18.0 | Absorptive | 3 | 2 | 65 | 100 | 27 |
S1L1 | 1.0 - 2.0 | Absorptive | 0.9 | 1.5 | 85 | 100 | 30 |
S1S1 | 2.0 - 4.0 | Absorptive | 1.1 | 1.6 | 75 | 100 | 30 |
S1C1 | 4.0 - 8.0 | Absorptive | 1.8 | 1.6 | 75 | 100 | 30 |
S1X3 | 8.0 - 18.0 | Absorptive | 2.8 | 2 | 65 | 100 | 27 |
SWM-1100A | 0.5 - 18.0 | Absorptive | 2.6 | 1.8 | 50 | 100 | 30 |
S2H3 | 0.01 – 1.0 | Absorptive | 1.3 | 1.5 | 80 | 250 | 30 |
S2V2 | 0.1 - 1.0 | Absorptive | 1.3 | 1.5 | 80 | 250 | 30 |
S2U6 | 0.5 - 18.0 | Absorptive | 3.2 | 2 | 65 | 100 | 27 |
S2L1 | 1.0 - 2.0 | Absorptive | 1 | 1.5 | 85 | 100 | 30 |
S2S1 | 2.0 - 4.0 | Absorptive | 1.2 | 1.6 | 75 | 100 | 30 |
S2C1 | 4.0 - 8.0 | Absorptive | 1.9 | 1.6 | 75 | 100 | 30 |
S2X3 | 8.0 - 18.0 | Absorptive | 3 | 2 | 65 | 100 | 27 |
SWM-1200A | 0.5 - 18.0 | Absorptive | 3 | 2 | 65 | 100 | 30 |
S3H3 | 0.01 – 1.0 | Absorptive | 1.4 | 1.5 | 80 | 250 | 30 |
S3V2 | 0.1 - 1.0 | Absorptive | 1.4 | 1.5 | 80 | 250 | 30 |
S3U6 | 0.5 - 18.0 | Absorptive | 3.4 | 2 | 65 | 100 | 27 |
S3L1 | 1.0 - 2.0 | Absorptive | 1.1 | 1.5 | 85 | 100 | 30 |
S3S1 | 2.0 - 4.0 | Absorptive | 1.4 | 1.6 | 75 | 100 | 30 |
S3C1 | 4.0 - 8.0 | Absorptive | 2 | 1.6 | 75 | 100 | 27 |
S3X3 | 8.0 - 18.0 | Absorptive | 3.2 | 2 | 65 | 100 | 27 |
SWM-1300A | 0.5 - 18.0 | Absorptive | 3 | 2 | 65 | 100 | 30 |
S4H3 | 0.01 – 1.0 | Absorptive | 1.5 | 1.5 | 80 | 250 | 30 |
S4V2 | 0.1 - 1.0 | Absorptive | 1.5 | 1.5 | 80 | 250 | 30 |
S4U6 | 0.5 - 18.0 | Absorptive | 3.6 | 2 | 65 | 100 | 27 |
S4L1 | 1.0 - 2.0 | Absorptive | 1.2 | 1.5 | 85 | 100 | 30 |
S4S1 | 2.0 - 4.0 | Absorptive | 1.4 | 1.6 | 75 | 100 | 30 |
S4C1 | 4.0 - 8.0 | Absorptive | 2.2 | 1.6 | 75 | 100 | 27 |
S4X3 | 8.0 - 18.0 | Absorptive | 3.4 | 2 | 65 | 100 | 27 |
SWM-1400A | 0.5 - 18.0 | Absorptive | 3 | 2 | 65 | 100 | 30 |
S5H3 | 0.01 – 1.0 | Absorptive | 1.6 | 1.5 | 80 | 250 | 30 |
S5V2 | 0.1 - 1.0 | Absorptive | 1.6 | 1.5 | 80 | 250 | 30 |
S5U6 | 0.5 - 18.0 | Absorptive | 3.8 | 2 | 65 | 100 | 27 |
S5L1 | 1.0 - 2.0 | Absorptive | 1.3 | 1.5 | 85 | 100 | 30 |
S5S1 | 2.0 - 4.0 | Absorptive | 1.5 | 1.6 | 75 | 100 | 30 |
S5C1 | 4.0 - 8.0 | Absorptive | 2.3 | 1.6 | 75 | 100 | 27 |
S5X3 | 8.0 - 18.0 | Absorptive | 3.6 | 2 | 65 | 100 | 27 |
S6H3 | 0.01 – 1.0 | Absorptive | 1.7 | 1.5 | 80 | 250 | 30 |
S6V2 | 0.1 - 1.0 | Absorptive | 1.7 | 1.5 | 80 | 250 | 30 |
S6U6 | 0.5 - 18.0 | Absorptive | 4.1 | 2 | 65 | 100 | 27 |
S6L1 | 1.0 - 2.0 | Absorptive | 1.4 | 1.5 | 85 | 100 | 30 |
S6S1 | 2.0 - 4.0 | Absorptive | 1.6 | 1.6 | 75 | 100 | 27 |
S6C1 | 4.0 - 8.0 | Absorptive | 2.4 | 1.6 | 75 | 100 | 27 |
S6X3 | 8.0 - 18.0 | Absorptive | 3.9 | 2 | 65 | 100 | 27 |
XFH1 | 0.01 – 1.0 | Transfer | 0.8 | 1.5 | 80 | 250 | 30 |
XFU6 | 0.1 - 1.0 | Transfer | 3.3 | 2 | 65 | 100 | 27 |
XFL1 | 0.5 - 18.0 | Transfer | 1 | 1.5 | 80 | 100 | 30 |
XFS1 | 1.0 - 2.0 | Transfer | 1.2 | 1.6 | 75 | 100 | 30 |
XFC1 | 2.0 - 4.0 | Transfer | 1.9 | 1.6 | 75 | 100 | 30 |
XFX3 | 4.0 - 8.0 | Transfer | 3 | 2 | 65 | 100 | 27 |
