?API SAW Oscillators貼片電阻
發布時間：2023-01-04 16:36:41 瀏覽：601

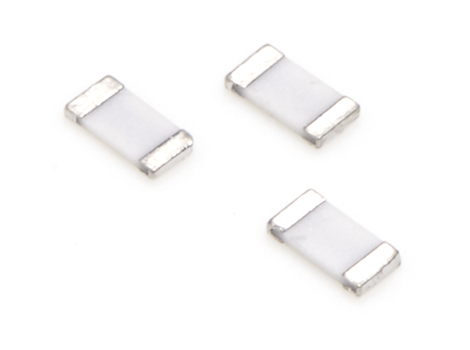

API SAW Oscillators提供適用范圍廣的Powerfilm ?片式電阻器。這些表面貼裝元器件通常情況下適用于混合衰減器和威爾金森功率分配器。API SAW Oscillators片式電阻器的數值從5到300Ω不等，具有多種尺寸和表層處理可以選擇?？梢愿鶕枨筇峁┢渌脑O計、數值和選項。
API Tech為全世界高可靠性行業提供SAW振蕩器。API Tech選用超低相噪聲表濾波器，其相位噪聲性能極低。API的SAW產品可提供頻率范圍為100MHz至4000MHz，特別適合航空航天應用領域。API Tech提供穩定頻率、電壓控制和鎖相振蕩器。
深圳市立維創展科技有限公司，專注API SAW Oscillators超低相噪SAW晶振產品代理銷售，最快2-4周交付。
詳情了解API SAW Oscillators請點擊：http://www.liaoyuan999.com/brand/60.html
Model | Power
(Watts) | Frequency
(GHz) | Ceramic
Substrate | Resistor
Film | Wrap Options | Finish
Option | Width
(Inches) | Length
(Inches) | Height
(Inches) |
26TPC20-40 | 1 | 26 | BeO | Thick | X, W, S | G, N, T, H | 0.02 | 0.04 | 0.01 |
3PPC250-250B | 60 | 3 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.06 |
ANC100-200A | 20 | 4 | AlN | Thin | X, W, S | N, T, H | 0.1 | 0.2 | 0.04 |
ANC200-200 | 30 | 4 | AlN | Thin | X, S | N, T, H | 0.2 | 0.2 | 0.04 |
ANC250-250-40 | 40 | 2.5 | AlN | Thin | X, W, S | N, T, H | 0.25 | 0.25 | 0.04 |
ANC250-375 | 150 | 3 | AlN | Thin | X | N, T, H | 0.25 | 0.375 | 0.04 |
ANC350-225 | 100 | 2 | AlN | Thin | X | N, T, H | 0.35 | 0.225 | 0.04 |
ANC375-375 | 200 | 1 | AlN | Thin | X | N, T, H | 0.375 | 0.375 | 0.04 |
ANC50-100 | 10 | 2.5 | AlN | Thin | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
ANC50-50 | 5 | 4 | AlN | Thin | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
KAC100-200A | 20 | 3 | AlN | Thick | X, S | N, T, H | 0.1 | 0.2 | 0.04 |
KAC250-250A | 75 | 5 | AlN | Thick | X, S | N, T, H | 0.25 | 0.25 | 0.04 |
KAC250-375A | 100 | 3 | AlN | Thick | X, S | N, T, H | 0.25 | 0.375 | 0.04 |
KAC60-120A | 10 | 4 | AlN | Thick | X, S | N, T, H | 0.06 | 0.12 | 0.025 |
NPC20-40 | 3 | 18 | BeO | TaN | X, W, S | G, N, T, H | 0.02 | 0.04 | 0.01 |
NPC25-50 | 5 | 12.4 | BeO | TaN | X, W, S | G, N, T, H | 0.025 | 0.05 | 0.01 |
NPC50-100 | 25 | 4 | BeO | TaN | X, W, S | G, N, T, H | 0.05 | 0.1 | 0.01 |
NPC50-50 | 8 | 10 | BeO | TaN | X, W, S | G, N, T, H | 0.05 | 0.05 | 0.01 |
NPC75-150 | 50 | 4 | BeO | TaN | X, W, S | G, N, T, H | 0.075 | 0.15 | 0.01 |
PC50-50 | 5 | 4 | Alumina | Thick | X, W, S | N, T, H | 0.05 | 0.05 | 0.01 |
PPC100-200A | 65 | 4 | BeO | Thin | X, W, S | N, T, H | 0.1 | 0.2 | 0.04 |
PPC250-250A | 125 | 1 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.04 |
PPC250-250BS | 80 | 1.5 | BeO | Thin | X | N, T, H | 0.25 | 0.25 | 0.06 |
PPC250-375A | 150 | 1 | BeO | Thin | X | N, T, H | 0.25 | 0.375 | 0.04 |
PPC375-375A | 250 | 1 | BeO | Thin | X | N, T, H | 0.375 | 0.375 | 0.04 |
PPC50-100A | 10 | 8 | BeO | Thin | X, S | N, T, H | 0.05 | 0.1 | 0.04 |
PPC50-100D | 10 | 6 | BeO | Thin | X, W, S | N, T, H | 0.05 | 0.1 | 0.025 |
