?CINCON磚式 DC-DC 轉換器

發布時間：2022-12-09 16:43:11     瀏覽：637

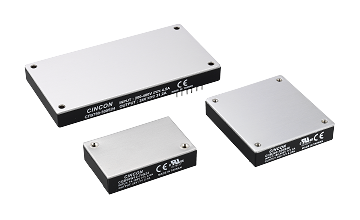

CINCON是經驗豐富的DC/DC轉換器制造廠商，CINCON的DC-DC選用磚式電源和轉換器，提供標準規范的四分之一、半磚和全磚尺寸。CINCON的DC/DC磚設置在印刷線路板上，具備輸入電壓范圍廣、隔離防護、輸出電壓穩定性、效率更高、保護全方位等特性。

四分之一的磚尺寸，CINCON有50W到150W最率密度最高，輸入范圍最大寬度12:1。半磚尺寸，CINCON有50W到350W最率密度最高，輸入范圍最大寬度12:1。全磚尺寸，CINCON有400W到800W最率密度最高，輸入范圍最大寬度4:1。

CINCON不僅提供標準DC-DC磚式轉換器還提供了即插即用DC-DC轉換器模塊，CMFC/CMFD系列產品，內嵌EMI解決方案，幫助客戶處理不愉快的情況EMC問題。CINCON為了減少客戶的研發時間，提供具體的應用闡述當作指導工具。

深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢

詳情了解CINCON電源請點擊：http://www.liaoyuan999.com/article/2177.html


12:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W12

150W

14~160V

5V, 12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

8:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

4:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CQE50W

50W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB50W

50W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB60W-110S

60W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CHB75W

75W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)

CQB100W-110S

100W

43~160V

12V, 15V, 24V, 28V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100W

100W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHE100W

100W

18~75V, 9~36V

12V, 15V, 24V, 3.3V, 48V, 5V

1.5KVDC Isolation

2.28×2.40x0.50
(Half Brick)

CQB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

2250Vdc Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB150W

150W

18~75V, 9~36V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W

200W

10~36V, 18~75V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CHB300W

300W

18~75V, 9~36V

12V, 15V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL62368-1

2.28×2.40x0.50
(Half Brick)

CHB300W-110S

300W

43~160V

12V, 24V, 28V, 3.3V, 48V, 5V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CFB400W

400W

18~75V, 9~36V

12V, 24V, 28V, 48V, 5V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB600W-110S

600W

43~160VDC

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

2:1 Input Range

Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

CHB50

50W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB75-300S

75W

180~450V

12V, 15V, 24V, 3.3V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB75

75W

18~36V, 36~75V, 9~18V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CQB100-110S

100W

66~160V

12V, 24V, 3.3V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

CHB100

100W

18~36V, 36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB150-300S

150W

180~425V

12V, 15V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL62368-1 & CB

2.28×1.45x0.50
(Quarter Brick)

CHB150

150W

36~75V

12V, 15V, 24V, 3.3V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

CHB150-110S

150W

66~160V

12V, 24V, 5V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

CQB200

200W

18~36V

24V, 28V

2250Vdc Isolation
UL62368-1
EN45545-2

2.28×1.45x0.50
(Quarter Brick)

CHB300-300S

300W

180~425V

12V, 24V, 28V, 48V, 5V

3KVAC Isolation
UL60950-1 & CB

2.28×2.40x0.50
(Half Brick)

CHB350

350W

18~36V, 36~75V

12V, 24V, 28V, 3.3V, 48V, 5V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
2.28×2.40x0.52
(Half Brick)

CFB600

600W

18~36V, 36~75V

12V, 24V, 28V, 32V, 48V

1.5KVDC Isolation
UL62368-1

4.60×2.40x0.50
(Full Brick)

CFB600-300S

600W

180~425V

12V, 24V, 48V

3KVAC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

CFB750-300S

750W

200~425V

12V, 15V, 24V, 28V, 36V, 48V

3KVAC Isolation

4.60×2.40x0.50
(Full Brick)

CFB800

800W

18~36V

28V

1.5KVDC Isolation

4.60×2.40x0.50
(Full Brick)
