?RF-LAMBDA功率限制器
發布時間：2022-11-08 16:40:20 瀏覽：776
限制器是種電壓調節設備，限制設備的部分參數，以保障設備在限制的參數值內正常運轉，不允許超過限制使用。限制器作用是維護電動機的安全穩定工作，避免保護繼電器工作導致的異常停機。
功率限制器是種高功率因數的交流/直流變換器，適用于控制電流型升壓變換器的電源電路。功率限制器包含整流濾波電路，整流管的輸出與升壓電感和輸出二極管串聯，升壓電感與電源管后端與地面之間并聯，輸出整流濾波電路，輸出端通過電壓反饋網絡連接到變頻器控制芯片上。
特征
?寬帶使用0.1-0.5GHz
?無源高隔離限制器
?插入損耗低，回波損耗好
?高功率處理性能
?可根據需求定制開發
深圳市立維創展科技是RF-LAMBDA的經銷商， RF-LAMBDA的產品包括：無源控制模塊，有源控制模塊，寬帶功率放大器，窄帶PA和驅動放大器，產品生產線均根據美國軍用設計標準與生產制造，逐步廣泛運用于航天，航空，軍用設備，衛星通訊，雷達等高端工程項目。
詳情了解RF-LAMBDA請點擊：http?: //www.liaoyuan999.com/public/brand/3.html
Part Number | Description | "Frequency Range " (GHz) | CW Input Power (W) | Peak Power Flat Leakage (+dBm) | Insertion Loss (dB) | Speed (ns) | VSWR (max) | Heatsink |

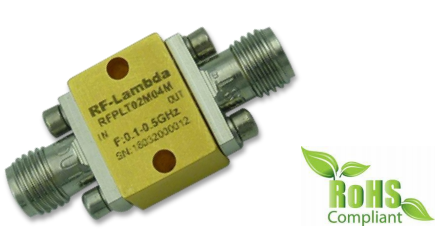

RFPLT02M04M | PIN Diode Limiter | 0.10~0.50 | 5 | 17 | 0.50 | 50 | 1.20 | N/A |
RFAPLT01M05M | Input Over Drive Protector | 0.06~0.51 | 10 | -20 | 0.80 | 100 | 1.50 | N/A |
RFPLT05M01G | PIN Diode Limiter | 0.50~1.00 | 3~100 | 17 | 0.40 | 50 | 1.20 | N/A |
RFPLT01G02G | PIN Diode Limiter | 1.00~2.00 | 3~80 | 17 | 0.50 | 50 | 1.30 | N/A |
RFPLT02G04G | PIN Diode Limiter | 2.00~4.00 | 3~50 | 17 | 0.60 | 50 | 1.40 | N/A |
RFPLT02G04GG | PIN Diode Limiter | 2.00~4.00 | 200 | 16 | 0.60 | 120 | 1.80 |
|
RFPLT06G06G | PIN Diode Limiter | 5.00~6.00 | 5W CW
250W Peak | 20 | 0.70 | 50 | 1.30 | N/A |
RFPLT05G06G | PIN Diode Limiter | 5.40~6.00 | 1W | -15 | 1.00 | 50 | 1.50 | N/A |
RFPLT01G06G | PIN Diode Limiter | 1.00~6.00 | 5W CW 100W Peak | 20 | 0.50 | 50 | 1.40 | N/A |
RFPLT00M06G | Pin Diode Limiter | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT01G06GG | PIN Diode Limiter | 0.50~6.00 | 100 | 16 | 0.70 | 120 | 1.80 | N/A |
RFPLT01G06GG-H | Hermetically Sealed Pin Diode Limiter | 1.00~6.00 | 50 | 18 | 1.00 | 50 | 1.80 | N/A |
RFPLT00M06GN | PIN Diode LImiter | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT00M06GN-H | High Power Limiter (Hermetically Sealed) | 0.05~6.00 | 80 | 17 | 1.20 | 50 | 2.00 |
|
RFPLT04G08G | PIN Diode Limiter | 4.00~8.00 | 5 | 17 | 1.00 | 50 | 1.50 | N/A |
RFAPLT02G08G | Input Over Drive Protector | 2.00~8.00 | 1 | -15 | 0.90 | 100 | 1.20 | N/A |
RFAPLT04G08G | Input Over Drive Protector | 4.00~8.00 | 1 | -15 | 1.40 | 100 | 1.20 | N/A |
RFPLT08G12G | PIN Diode Limiter | 8.00~12.00 | 6 | 17 | 1.60 | 50 | 1.60 | N/A |
RFPLT08G12GG | PIN Diode Limiter | 7.50~12.50 | 50 | 19 | 0.70 | 120 | 2.00 | N/A |
RFLMT10G10G | PIN Diode Limiter | 10.00~15.00 | 25 | 15 | 1.00 | 50 | 1.30 | N/A |
RFPLT02G18GB | PIN Diode Limiter | 1.00~18.00 | 6 | 17 | 2.00 | 50 | 2.20 | N/A |
RFPLT12G18G | PIN Diode Limiter | 12.00~18.00 | 6 | 17 | 1.80 | 50 | 1.80 | N/A |
RFPLT12G18GH | Input Over Drive Protector | 12.00~18.00 | 1 | -15 | 1.40 | 100 | 1.20 | N/A |
RFAPLT01G18G | Input Over Drive Protector | 1.00~18.00 | 33 | -17 | 3.00 | 100 | 2.00 | N/A |
RFPLT01M20GG | PIN Diode Limiter | 0.05~21.00 | 4 | 19 | 1.00 | 50 | 1.80 | N/A |
RFPLT01M20GG-H | Hermetically Sealed PIN Diode Limiter | 0.05~21.00 | 4 | 19 | 1.00 | 50 | 1.80 | N/A |
RFAPLT01G23G | Input Over Drive Protector | 1.00~23.00 | 1 | -10 | 2.50 | 100 | 1.50 | N/A |
RFPLT01G26GE-H | PIN Diode Limiter (Hermetic Seal) | 1.00~26.00 | 1 | 21 | 3.00 | 120 | 1.80 | N/A |
RFPLT01G26GE | PIN Diode Limiter | 1.00~26.00 | 1 | 18 | 3.00 | 120 | 1.80 | N/A |
RFPLT02G26GG | PIN Diode Limiter | 2.00~26.00 | 5 | 18 | 1.00 | 120 | 1.80 | N/A |
RFPLT29G39GG | PIN Diode Limiter | 29.00~39.00 | 1 | 20 | 2.00 | 120 | 2.00 | N/A |
RFAPLT26G40G | Input Over Drive Protector | 26.00~40.00 | 10 | -15 | 2.00 | 100 | 1.50 |
|
RFAPLT18G40G | Input Over Drive Protector | 18.00~40.00 | 23 | -17 | 4.00 | 100 | 2.00 | N/A |
