CINCON轉換器DIP / SMD 3-75W

發布時間：2022-03-14 16:40:05 瀏覽：982

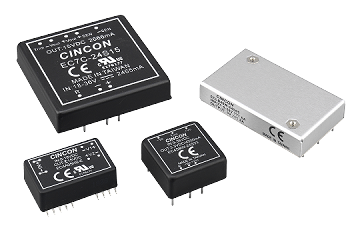

CINCON的DIP DC-DC轉換器具有各種封裝形式，例如3W至15W的DIP24或SMD24封裝形式，10W至30W的1”x1”封裝形式，10W至75W的2”x1”封裝形式，2”x1.6”和2”x2”封裝形式從15W到40W。CINCON具備超過29年的研制工作經驗，致力于鐵路交通、工業生產、ITE、5G電信、醫療設備和家庭應用領域。

對于工業生產應用領域，CINCON所有的DIPDC-DC轉換器都可用于工業生產應用領域。

對于鐵路交通應用領域，有適用EN50155標準的DIP轉換器，例如DIP248W和10W、2”x1”封裝形式20W和40W。此外，CINCON提供2”x1”、20W、18:1超寬輸入范圍DC-DC轉換器，包含應用系統的大量分布式電壓。

DIP轉換器，DC到DC電源制造商

CINCON設計和制造具備行業標準和引腳排列的3W-75WDC/DCDIP轉換器。特點是效率高、工作溫度高、輸入范圍寬。CINCON還為各種應用領域提供非隔離和高隔離DC/DC轉換器。深圳市立維創展科技是CINCON電源模塊的代理經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢

詳情了解CINCON電源請點擊：http://www.liaoyuan999.com/article/2177.html

18:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
NEW	EC7BW18	20W	8.5~160V	12V, 15V, 5V, ±12V, ±15V, ±24V	3KVac Isolation UL62368-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)

4:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AW	3W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC4AW	6W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5K/3KVdc Isolation	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC6AW	8W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN50155 Compliant	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC2SBW	10W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC4BW	10W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN55022 Class A	2.00x1.00x0.40(DIP)
NEW	EC7AW	10W	18~74V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	3KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
	EC6AW-110	10W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	3KVdc Isolation UL60950-1 & CB EN45545-2 EN50155 Compliant	1.25x0.80x0.50(DIP24)
	EC8AW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation EN55032 Class A	1.25x0.80x0.40(DIP24)
	EC3SBW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC5BW	15W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
	EC5C	15W	18~72V, 9~36V	12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
	EC1SC	20W	18~72V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	EN55022 Class A	2.00×1.60×0.45(DIP)
	EC4SBW	20W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
	EC7BW-110	20W	43~160V	12V, 15V, 5V, ±12V, ±15V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
	EC7BW	20W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN45545-2 EN50155 Compliant	2.00x1.00x0.40(DIP)
NRND	EC3SCW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V	1.5KVdc Isolation EN60950-1	2.00×1.60×0.40(DIP)
	EC5SBW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	1.00x1.00x0.40(DIP)
NRND	EC6E	30W	18~72V, 9~36V	+5/+12/-5V, 12V, 15V, 5/±12V, 5/±15V, 5V, ±12V, ±15V	500Vdc Isolation	2.56x3.00x0.83(DIP)
	EC9BW	30W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
	ECLB40W	40W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
	ECLB40W-110	40W	43~160V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±24V	3KVdc Isolation UL60950-1 EN45545-2 EN50155 Compliant	2.05x1.20x0.40(DIP)
	ECLB60W	60W	18~75V, 9~36V	12V, 15V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)
NEW	ECLB75W	75W	18~75V, 9~36V	12V, 15V, 5V, ±12V, ±15V, ±24V	2.25KVdc Isolation With Mounting Inserts	2.05x1.20x0.40(DIP)

2:1 Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3A	3W	18~36V, 36~72V, 4.5~6V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC3AB	3W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
NRND	EC3BB	7.5W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1500Vdc Isolation EN55022 Class B	2.00x1.00x0.40(DIP)
	EC3A-E	3W	18~36V, 36~72V, 4.5~9V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation EN55032 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
	EC4A	6W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC4AB	6W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation EN55022 Class B UL60950-1	1.25x0.80x0.50(DIP24) 1.25x0.80x0.55(SMD24)
	EC4A-E	6W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500/1.5K/3KVdc Isolation EN55032 Class A UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24) 1.25×0.80x0.41(SMD24)
	EC6A	7.5W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC2SB	10W	18~36V, 36~75V, 4.7~9V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
	EC4BE	10W	18~36V, 36~72V, 9~18V	12V, 15V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
	EC4BU	10W	18~36V, 36~75V, 4.7~9V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
	EC7A	10W	18~36V, 36~75V, 9~18V	12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation UL60950-1	1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
	EC3SB	15W	18~36V, 36~75V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation	1.00x1.00x0.40(DIP) 1.00x1.00x0.36(SMD)
NRND	EC3C	15W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation	2.00x2.00x0.40(DIP)
	EC5BU	15W	18~36V, 36~75V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	1.5KVdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
	EC5BE	15W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN55032 Class A	2.00x1.00x0.40(DIP)
	EC7B	20W	18~36V, 36~75V, 9~18V	1.8V, 12V, 15V, 2.5V, 3.3V, 5V, ±12V, ±15V	1.5KVdc Isolation	2.00x1.00x0.40(DIP)
	EC6C	30W	18~36V, 36~72V, 9~18V	12V, 15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V, ±5V	500Vdc Isolation EN60950-1	2.00x2.00x0.40(DIP)
	EC7C	40W	18~36V, 36~75V, 9~18V	12V, 15V, 2.5V, 3.3/5V, 3.3/±12V, 3.3/±15V, 3.3V, 5/±12V, 5/±15V, 5V, ±12V, ±15V	1.5KVdc Isolation EN60950-1	2.00x2.00x0.40(DIP)

High Isolation 6KV

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC4AW-H6	6W	18~72VDC, 9~36VDC	12V, 5V, ±12V, ±15V	6KVdc Isolation EN55032 Class A 5uA Leakage Current	1.25x0.80x0.40 (DIP24)

+/-10% Input Range

	Model	Power	Input Voltage	Output Voltage	Features	Dimensions (Inch)
	EC3AE	3W	12V, 24V, 28V, 48V, 5V	12V, 15V, 5V, ±12V, ±15V		1.25x0.80x0.40(DIP24) 1.25×0.80x0.45(SMD24)
