PULSAR微波帶狀線2路功率分配器/組合器
發布時間：2022-03-02 16:54:11 瀏覽：1032
PULSAR微波生產制造多種多樣窄帶和寬帶配備的2路功率分配器，工作頻率使用范圍從225MHz到70GHz。它們設計適用于在50歐姆傳輸系統中解決10至30瓦的輸入功率。采用微帶線或帶狀線設計，并對其進行優化以獲得最佳使用性能。

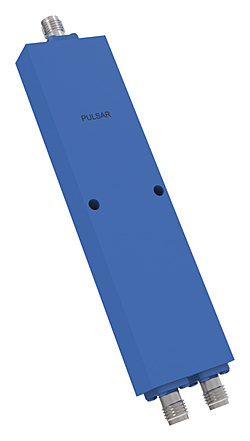

PULSAR微波帶狀線2路功率分配器/組合器單元標準配置SMA或N母頭連接器，或適用于高頻率組件的2.92mm、2.40mm和1.85mm連接器。
深圳市立維創展科技授權代理銷售PULSAR微波產品，并提供售后支持服務，歡迎咨詢。
頻率范圍(GHz) |
| 最大插入損耗 | 隔離 | 幅度平衡 | 相位平衡 | 最大駐波比 | 最大輸入功率 | 連接器 | 貨號 |
Min | Max | (dB) | (dB) | (dB) | （°） |
| （W） | 類型 |
|
0.225 | 0.4 | 0.4 | 22 | 0.2 | 2° | 1.20:1 | 30 | ? | PS2-01-450/1N |
0.225 | 0.4 | 0.4 | 25 | 0.2 | 2° | 1.20:1 | 30 | SMA | PS2-01-450/1S |
0.25 | 0.5 | 0.4 | 22 | 0.2 | 2° | 1.20:1 | 30 | ? | PS2-02-450/1N |
0.25 | 0.5 | 0.4 | 22 | 0.2 | 2° | 0.05556713 | 30 | SMA | PS2-02-450/1S |
0.4 | 1 | 0.4 | 18 | 0.2 | 2° | 1.30:1 | 30 | ? | PS2-03-450/1N |
0.4 | 1 | 0.4 | 18 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-03-450/1S |
0.8 | 1 | 0.3 | 23 | 0.3 | 2° | 1.30:1 | 30 | ? | PS2-04-450/1N |
0.8 | 1 | 0.3 | 23 | 0.3 | 2° | 1.30:1 | 30 | SMA | PS2-04-450/3S |
0.95 | 1.225 | 0.3 | 22 | 0.3 | 2° | 1.25:1 | 30 | ? | PS2-05-450/3N |
0.95 | 1.225 | 0.3 | 22 | 0.3 | 2° | 1.25:1 | 30 | SMA | PS2-05-450/4S |
0.5 | 2 | 0.6 | 18 | 0.2 | 4° | 1.40:1 | 30 | ? | PS2-06-450/1N |
0.5 | 2 | 0.6 | 22 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-06-450/2S |
1 | 2 | 0.3 | 22 | 0.2 | 3° | 1.30:1 | 30 | ? | PS2-07-450/3N |
1 | 2 | 0.3 | 22 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-07-450/4S |
0.8 | 2.2 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-23-450/3S |
0.8 | 2.5 | 0.5 | 20 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-25-450/2S |
1.5 | 3 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | ? | PS2-08-450/3N |
1.5 | 3 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-08-450/4S |
0.5 | 4 | 0.5 | 16 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-21-450/3S |
1 | 4 | 0.4 | 20 | 0.2 | 5° | 1.40:1 | 30 | ? | PS2-09-450/1N |
1 | 4 | 0.4 | 20 | 0.2 | 5° | 1.40:1 | 30 | SMA | PS2-09-450/3S |
2 | 4 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | ? | PS2-10-450/3N |
2 | 4 | 0.4 | 20 | 0.2 | 3° | 1.30:1 | 30 | SMA | PS2-10-450/8S |
3.625 | 4.25 | 0.3 | 21 | 0.2 | 2° | 1.35:1 | 30 | ? | PS2-11-450/3N |
3.625 | 4.25 | 0.3 | 21 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-11-450/8S |
0.5 | 6 | 0.6 | 18 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-22-450/10S |
5.8 | 6.45 | 0.3 | 21 | 0.2 | 2° | 1.30:1 | 30 | ? | PS2-12-450/3N |
5.8 | 6.45 | 0.3 | 20 | 0.2 | 2° | 1.30:1 | 30 | SMA | PS2-12-450/8S |
0.5 | 8 | 1 | 18 | 0.5 | 5° | 1.50:1 | 30 | SMA | PS2-27-450/10S |
2 | 8 | 0.4 | 17 | 0.3 | 6° | 1.40:1 | 30 | ? | PS2-13-450/3N |
2 | 8 | 0.4 | 20 | 0.3 | 4° | 1.40:1 | 30 | SMA | PS2-13-450/6S |
4 | 8 | 0.4 | 18 | 0.2 | 4° | 1.40:1 | 30 | ? | PS2-14-450/3N |
4 | 8 | 0.4 | 20 | 0.2 | 2° | 1.40:1 | 30 | SMA | PS2-14-450/8S |
7.2 | 8.5 | 0.5 | 17 | 0.3 | 6° | 1.40:1 | 30 | ? | PS2-15-450/3N |
7.2 | 8.5 | 0.5 | 20 | 0.2 | 3° | 1.40:1 | 30 | SMA | PS2-15-450/8S |
8 | 12.4 | 0.4 | 20 | 0.2 | 4° | 1.35:1 | 30 | SMA | PS2-16-450/8S |
10 | 15 | 0.4 | 20 | 0.2 | 4° | 1.40:1 | 30 | SMA | PS2-19-450/8S |
0.5 | 18 | 1.7 | 16 | 0.6 | 10° | 1.50:1 | 30 | SMA | PS2-20-450/10S |
1 | 18 | 1.5 | 17 | 0.5 | 8° | 1.60:1 | 30 | SMA | PS2-26-450/13S |
2 | 18 | 1.6 | 18 | 0.5 | 8° | 1.70:1 | 30 | ? | PS2-18-450/14N |
2 | 18 | 1 | 15 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-18-450/16S |
2 | 18 | 1 | 20 | 0.4 | 5° | 1.50:1 | 30 | SMA | PS2-18-450/19S |
2 | 18 | 1 | 18 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-18-450/9S |
5 | 18 | 0.5 | 17 | 0.4 | 5° | 1.40:1 | 30 | SMA | PS2-17-450/8S |
0.5 | 20 | 2.2 | 12 | 0.4 | 12° | 1.80:1 | 30 | SMA | PS2-24-450/10S |
1 | 27 | 2.5 | 15 | 0.5 | 8° | 1.80:1 | 10 | SMA | PS2-51-450/13S |
4 | 27 | 1 | 18 | 0.5 | 6° | 1.60:1 | 10 | SMA | PS2-50-450/8S |
1 | 40 | 2.8 | 10 | 0.6 | 8° | 1.90:1 | 10 | 2.92 | PS2-55-450/17S |
2 | 40 | 2.5 | 13 | 0.6 | 8° | 1.90:1 | 10 | 2.92 | PS2-54-450/18S |
4 | 40 | 2 | 13 | 1 | 10° | 1.90:1 | 10 | 2.92 | PS2-52-450/8S |
15 | 40 | 1.2 | 13 | 0.8 | 10° | 1.80:1 | 10 | 2.92 | PS2-53-450/15S |
8 | 60 | 3 | 10 | 1 | 15° | 2.00:1 | 10 | 1.85 | PS2-56-450/15S |
10 | 70 | 3 | 10 | 1 | 15° | 2.00:1 | 10 | 1.85 | PS2-57-450/15S |
表面貼裝/插入式 |
|
|
|
|
|
|
|
|
|
頻率范圍(GHz) |
| 最大插入損耗 | 隔離 | 幅度平衡 | 相位平衡 | 最大駐波比 | 最大輸入功率 | 包裝類型 | 貨號 |
Min | Max | (dB) | (dB) | (dB) | （°） |
| （W） |
|
|
0.8 | 1 | 0.6 | 18 | 0.2 | 2° | 1.40:1 | 10 | 表面 | PB-14-G |
0.8 | 1 | 0.5 | 20 | 0.2 | 2° | 1.40:1 | 1 | 表面 | PB-2 |
1.3 | 1.6 | 0.7 | 18 | 0.2 | 2° | 1.40:1 | 10 | 表面 | PB-10-G |
1.7 | 2 | 0.7 | 18 | 0.2 | 2° | 1.40:1 | 10 | 表面 | PB-11-G |
1.7 | 2 | 0.5 | 20 | 0.2 | 2° | 1.40:1 | 1 | 表面 | PB-4 |
2.2 | 2.5 | 0.6 | 18 | 0.3 | 3° | 1.40:1 | 1 | 表面 | PB-5 |
2.3 | 2.7 | 0.7 | 18 | 0.3 | 3° | 1.40:1 | 10 | 表面 | PB-12-G |
2.7 | 2.9 | 0.7 | 18 | 0.3 | 3° | 1.40:1 | 10 | 表面 | PB-15-G |
3 | 3.8 | 0.8 | 18 | 0.3 | 3° | 1.40:1 | 10 | 表面 | PB-13-G |
2 | 4 | 0.4 | 20 | 0.3 | 3° | 1.40:1 | 1 | Drop-In | P2S-03-L1 |
4 | 8 | 0.4 | 20 | 0.3 | 3° | 1.50:1 | 1 | Drop-In | P2S-02-S1 |
4 | 8 | 0.4 | 20 | 0.3 | 3° | 1.40:1 | 1 | Drop-In | P2S-04-L1 |
3 | 10 | 0.5 | 18 | 0.3 | 4° | 1.50:1 | 1 | Drop-In | P2S-05-L1 |
5 | 10 | 0.4 | 20 | 0.3 | 4° | 1.50:1 | 1 | Drop-In | P2S-01-S1 |
