Anritsu IP/以太網測試儀
發布時間：2020-12-31 16:45:15 瀏覽：1748

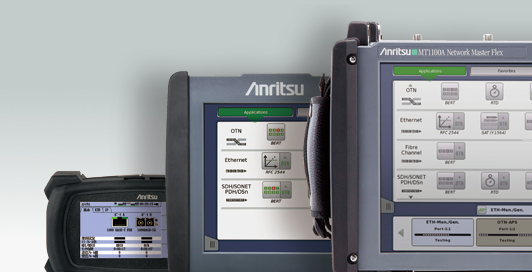

Anritsu強大的以太網/IP網絡數據分析儀有兩個主要功能。一個是對IP和以太網網絡及設備的性能進行評估，另一個是對網絡進行監控。此外，Anritsu所選的解碼軟件和專家分析軟件可以對采集到的以太網信號、SONET和SDH幀信號進行解碼和顯示，并支持全線速度（最高400gbps）的分析和測試。
深圳市立維創展科技是Anritsu公司的經銷商，提供Anritsu公司產品包括毫米波連接器，檢波器，限幅器，微波負載和功分器，產品原裝進口，質量保證，歡迎咨詢。
詳情了解Anritsu產品請點擊：http://www.liaoyuan999.com/brand/12.html
或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674
MODEL NUMBER | 對應標準 | 比特率 | 接口 |
MT1040A
Network Master Pro (400G Tester) | Ethernet
eCPRI/RoE
CPRI/OBSAI
OTN/SDH/SONET
Fibre Channel | 10 Mbit/s — 400 Gbit/s | QSFP-DD
OSFP
QSFP28/QSFP+
SFP28/SFP+/SFP
RJ45 |
MT1000A
Network Master Pro (以太網/CPRI/OTDR測試儀) | Ethernet
eCPRI/RoE
CPRI/OBSAI
OTN/SDH/SONET
PDH/DSn
Fibre Channel | 1.5 Mbit/s — 100 Gbit/s | QSFP28/QSFP+
CFP4
SFP28/SFP+/SFP
RJ45
BNC
RJ48
Bantam |
MT1100A
網絡測試大師 | OTN
Ethernet
CPRI/OBSAI
SDH/SONET
PDH/DSn
Fibre Channel | 1.5 Mbit/s — 100 Gbit/s | CFP、CFP2、CFP4、QSFP28
CXP
QSFP+
SFP/SFP+
RJ45
BNC
RJ48
Bantam |
MU909060A
千兆以太網模塊 | Ethernet | 10 M/100 M/1 Gbit/s | Electrical
Optical |
MP1900A
信號質量分析儀-R | CEI-28G/56G/112G
PCI Express
InfiniBand
100G/200G/400G/800G
Ethernet
Thunderbolt
USB | 2.4 Gbit/s — 128 Gbit/s
(PAM4 up to 64Gbaud) | Differential_Electrical/
Optical |
MP1800A
信號質量分析儀 | CEI-28G
PCI Express
InfiniBand
100G Ethernet | 100 Mbit/s — 32.1 Gbit/s
(up to 64.2G with MP1861A/MP1862A) | Differential_Electrical/
Optical |
MP2110A
BERTWave? | Ethernet
SDH/SONET
OTN
Fibre Channel
InfiniBand
CPRI | BERT:
9.5 Gbit/s — 14.2 Gbit/s
24.3 Gbit/s —28.2 Gbit/s
Sampling Oscilloscope Bandwidth:
Optical SMF 35 GHz
Optical MMF 25 GHz
Electrical 40 GHz | BERT: Differential Electrical
Oscillo Scope：Electrical/Optical |
MP2100B
BERTWave?(10G BERT, 采樣示波器) | Ethernet
SDH/SONET
OTN
Fibre Channel
InfiniBand
CPRI | BERT:
125 Mbit/s — 12.5 Gbit/s
Sampling Oscilloscope Bandwidth:
Optical 9 GHz
Electrical 25 GHz | BERT: Differential Electrical
Oscillo Scope: Electrical/Optical |
MP1825B
四階加重 | CEI-28G
PCI express
InfiniBand
100 GbE | 1 Gbit/s — 14.1 Gbit/s (MP1825B-001, 005)
1 Gbit/s — 32.1 Gbit/s (MP1825B-002, 006) | Differential_Electrical |
