一、WENTEQ超低噪聲放大器芯片簡介
產品特點：
產品覆蓋100MHz至50GHz頻率范圍
超低噪聲，高增益，低至0.5dB的噪聲系數，以及高達50dB的增益
工作溫度范圍40~+ 85°C
體積小，成本極低
SMA內孔I / O或插入式連接
產品描述：
Wenteq Microwave的超低噪聲放大器是需要極低噪聲放大的應用的最具成本效益的解決方案。下面列出的規格是室溫結果。以下信息顯示我們的能力。我們鼓勵客戶向我們提供他們的具體要求，以便我們能夠提供客戶所需的放大器。
二、Custom mmic低噪聲放大器芯片簡介
Custom mmic開發了高性能GaAs和GaN RF /微波超低噪聲放大器（LNA），以滿足低偏置電流，低偏置電壓，極低噪聲系數，高增益和寬帶操作的嚴格設計要求。
它們的頻率范圍為2至45 GHz（L至Q頻段），采用超小型芯片和小型QFN封裝。
微波頻率的噪聲系數低至0.6 dB，我們的GaAs和GaN MMIC LNA適用于高靈敏度的衛星通信和雷達應用，專為高生存率的射頻/微波軍用和航空無線電設計而設計。
額外的LNA功能包括單正偏置電壓和20 dBm的輸入功率處理。
WENTEQ超低噪聲放大器型號以及參數
以下是提取的表格內容，以表格形式展示：

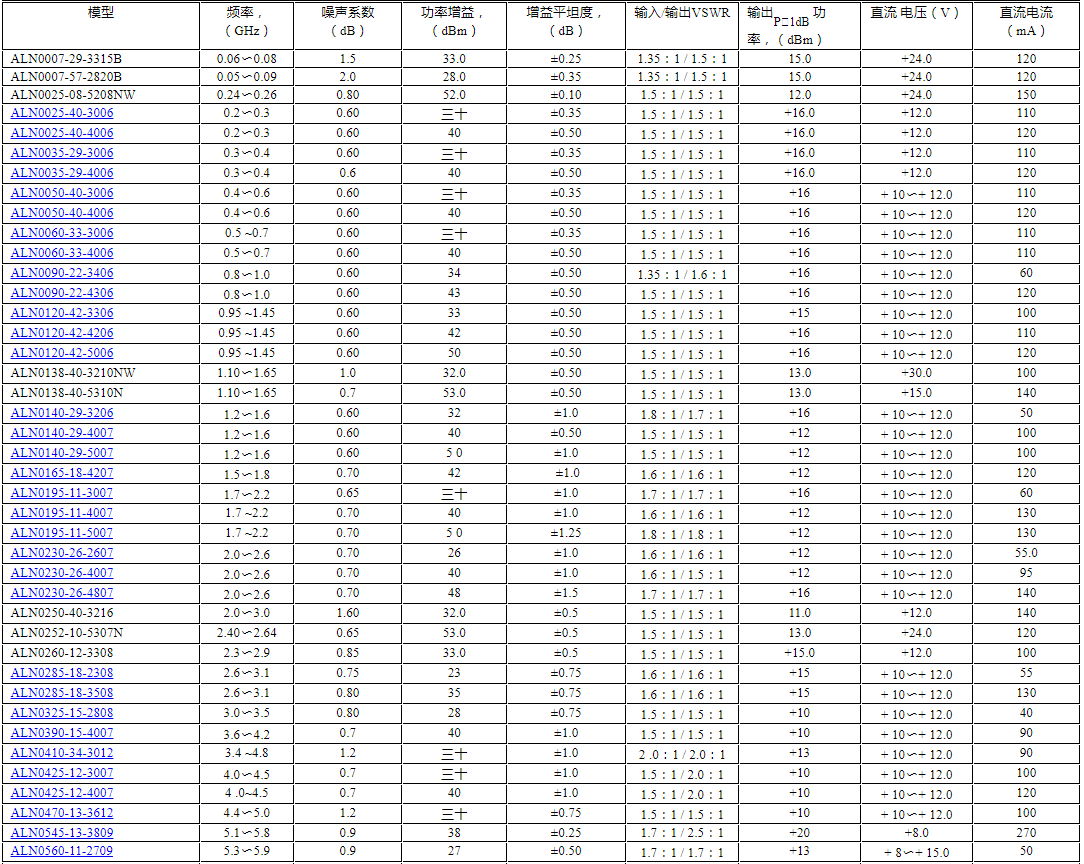

| 型號 | 頻率 (GHz) | 噪聲系數 (dB) | 功率增益 (dB) | 增益平坦度 (dB) | 輸入輸出 VSWR | 輸出 P21dB (dBm) | 輸出功率 (dBm) | 直流電壓 (V) | 直流電流 (mA) |
|--------------------|------------|--------------|--------------|----------------|--------------|----------------|---------------|------------|------------|
| ALN0007-29-3315B | 0.06~0.08 | 1.5 | 33.0 | ≈0.25 | 1.35 : 1 / 1.5 : 1 | 15.0 | +24.0 | 120 |
| ALN0007-57-2820B | 0.05~0.09 | 2.0 | 28.0 | ≈0.35 | 1.35 : 1 / 1.5 : 1 | 15.0 | +24.0 | 120 |
| ALN0023-08-3208NW | 0.24~0.26 | 0.80 | 52.0 | ≈0.10 | 1.5 : 1 / 1.5 : 1 | 12.0 | +24.0 | 150 |
| ALN0025-40-3006 | 0.2~0.3 | 0.60 | 三十 | ≈0.35 | 1.5 : 1 / 1.5 : 1 | ~16.0 | +12.0 | 110 |
| ALN0025-40-4006 | 0.2~0.3 | 0.60 | 40 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16.0 | +12.0 | 120 |
| ALN0035-29-3006 | 0.3~0.4 | 0.60 | 三十 | ≈0.35 | 1.5 : 1 / 1.5 : 1 | ~16.0 | +12.0 | 110 |
| ALN0035-29-4006 | 0.3~0.4 | 0.60 | 40 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16.0 | +12.0 | 120 |
| ALN0050-40-3006 | 0.4~0.6 | 0.60 | 三十 | ≈0.35 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 110 |
| ALN0050-40-4006 | 0.4~0.6 | 0.60 | 40 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 120 |
| ALN0060-33-3006 | 0.5~0.7 | 0.60 | 三十 | ≈0.35 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 110 |
| ALN0060-33-4006 | 0.5~0.7 | 0.60 | 40 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 110 |
| ALN0090-22-3406 | 0.8~1.0 | 0.60 | 34 | ≈0.50 | 1.35 : 1 / 1.6 : 1 | ~16 | +10~+12.0 | 60 |
| ALN0090-22-3406 | 0.8~1.0 | 0.60 | 43 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 120 |
| ALN0120-42-3306 | 0.95~1.45 | 0.60 | 33 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 110 |
| ALN0120-42-4206 | 0.95~1.45 | 0.60 | 42 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 110 |
| ALN0120-42-5006 | 0.95~1.45 | 0.60 | 50 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 120 |
| ALN0138-40-3210NW | 1.10~1.65 | 0.7 | 32.0 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | 13.0 | +30.0 | 100 |
| ALN0138-40-5310N | 1.10~1.65 | 0.7 | 33 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | 13.0 | +15.0 | 140 |
| ALN0140-29-3206 | 1.2~1.6 | 0.60 | 32 | ≈1.0 | 1.8 : 1 / 1.7 : 1 | ~16 | +10~+12.0 | 50 |
| ALN0140-29-4007 | 1.2~1.6 | 0.60 | 40 | ≈0.50 | 1.5 : 1 / 1.5 : 1 | ~16 | +10~+12.0 | 100 |
| ALN0140-29-5007 | 1.2~1.6 | 0.60 | 50 | ≈1.0 | 1.5 : 1 / 1.5 : 1 | ~12 | +10~+12.0 | 100 |
| ALN0165-18-3207 | 1.5~1.8 | 0.70 | 42 | ≈1.0 | 1.6 : 1 / 1.6 : 1 | ~12 | +10~+12.0 | 120 |
| ALN0195-11-3007 | 1.7~2.2 | 0.65 | 三十 | ≈1.0 | 1.7 : 1 / 1.7 : 1 | ~16 | +10~+12.0 | 60 |
| ALN0195-11-4007 | 1.7~2.2 | 0.70 | 40 | ≈1.0 | 1.6 : 1 / 1.6 : 1 | ~16 | +10~+12.0 | 130 |
| ALN0195-11-5007 | 1.7~2.2 | 0.70 | 50 | ≈1.25 | 1.8 : 1 / 1.8 :

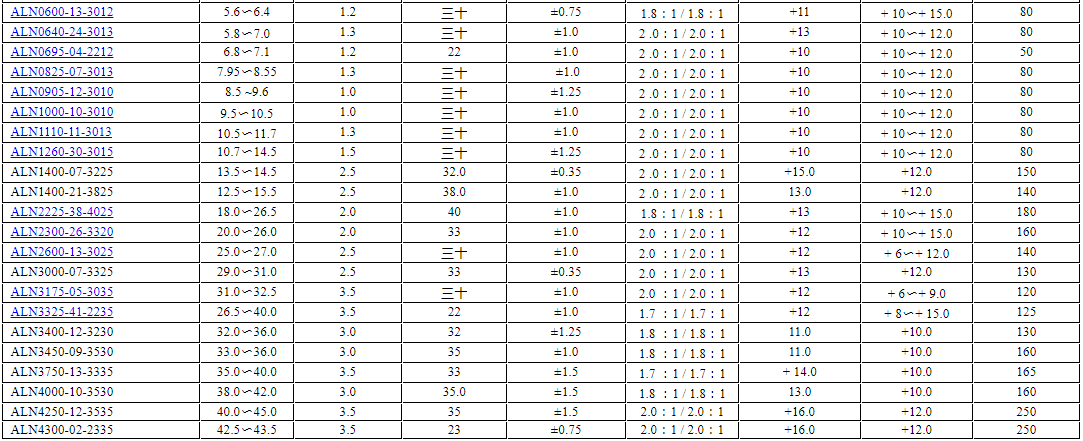

| 型號 | 頻率 (GHz) | 噪聲系數 (dB) | 功率增益 (dB) | 增益平坦度 (dB) | 輸入輸出 VSWR | 輸出 P21dB (dBm) | 輸出功率 (dBm) | 直流電壓 (V) | 直流電流 (mA) |
|------------------|-----------|-------------|-------------|---------------|-------------|---------------|-------------|-----------|-----------|
| ALN0600-13-3012 | 5.6～6.4 | 1.2 | 三十 | ≈0.75 | 1.8 : 1 / 1.8 : 1 | +11 | +10～+15.0 | 80 |
| ALN0640-24-3013 | 5.8～7.0 | 1.3 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +13 | +10～+12.0 | 80 |
| ALN0695-04-2212 | 6.8～7.1 | 1.2 | 22 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN0825-07-3013 | 7.95～8.55| 1.3 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN0905-12-3010 | 8.5～9.6 | 1.0 | 26 | ≈1.25 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN1000-10-3010 | 9.5～10.5 | 1.0 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN1110-11-3013 | 10.5～11.7| 1.3 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN1260-30-3015 | 10.7～14.5| 1.5 | 三十 | ≈1.25 | 2.0 : 1 / 2.0 : 1 | +10 | +10～+12.0 | 80 |
| ALN1400-07-3225 | 13.5～14.5| 2.5 | 32.0 | ≈0.35 | 2.0 : 1 / 2.0 : 1 | +15.0 | +12.0 | 150 |
| ALN1400-21-3825 | 12.5～15.5| 2.5 | 38.0 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | 15.0 | +12.0 | 140 |
| ALN2225-38-4023 | 18.0～26.5| 2.0 | 40 | ≈1.0 | 1.8 : 1 / 1.8 : 1 | +13 | +10～+15.0 | 180 |
| ALN2300-26-3320 | 20.0～26.0| 2.0 | 33 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +12 | +10～+12.0 | 160 |
| ALN2600-26-3320 | 25.0～27.0| 2.5 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +12 | +6～+12.0 | 140 |
| ALN3000-07-3325 | 29.0～31.0| 2.5 | 33 | ≈0.35 | 2.0 : 1 / 2.0 : 1 | +13 | +12.0 | 130 |
| ALN3175-05-3025 | 31.0～32.5| 3.5 | 三十 | ≈1.0 | 2.0 : 1 / 2.0 : 1 | +12 | +6～+9.0 | 120 |
| ALN3325-41-2223 | 26.5～40.0| 3.5 | 22 | ≈1.0 | 1.7 : 1 / 1.7 : 1 | +12 | +8～+15.0 | 125 |
| ALN3400-12-3230 | 32.0～36.0| 3.0 | 32 | ≈1.25 | 1.8 : 1 / 1.8 : 1 | 11.0 | +10.0 | 130 |
| ALN3450-26-4007 | 33.0～36.0| 3.0 | 35 | ≈1.0 | 1.8 : 1 / 1.8 : 1 | 11.0 | +10.0 | 160 |
| ALN3750-13-3333 | 35.0～40.0| 3.5 | 33 | ≈1.5 | 1.7 : 1 / 1.7 : 1 | +14.0 | +10.0 | 165 |
| ALN4000-10-3330 | 38.0～42.0| 3.0 | 35.0 | ≈1.5 | 1.8 : 1 / 1.8 : 1 | 13.0 | +10.0 | 160 |
| ALN4250-12-3335 | 40.0～45.0| 3.5 | 35 | ≈1.5 | 2.0 : 1 / 2.0 : 1 | +16.0 | +12.0 | 250 |
| ALN4300-02-3335 | 42.5～43.5| 3.5 | 23 | ≈0.75 | 2.0 : 1 / 2.0 : 1 | +16.0 | +12.0 | 250 |
Custom mmic低噪聲放大器型號以及參數

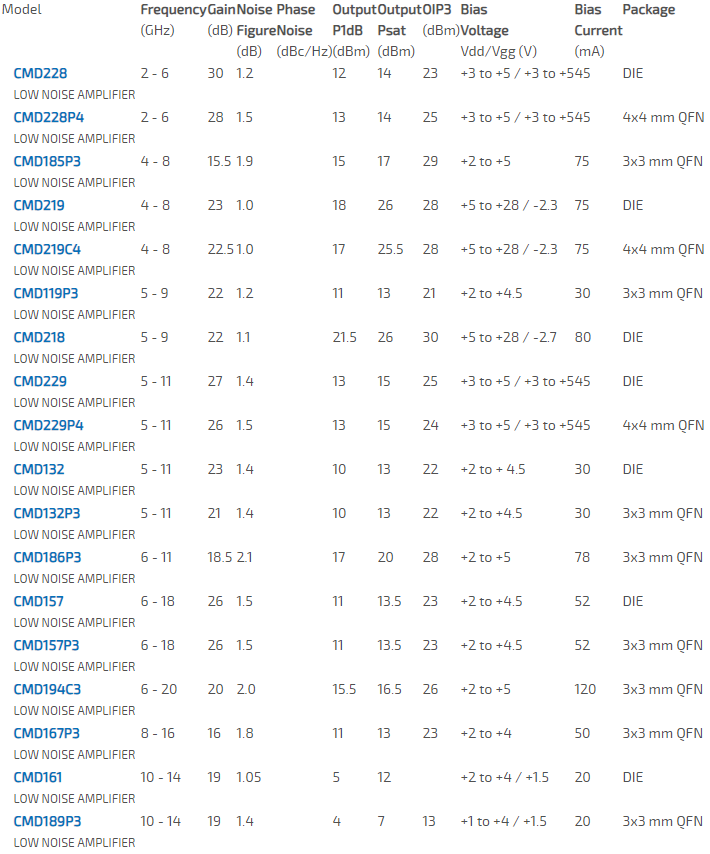

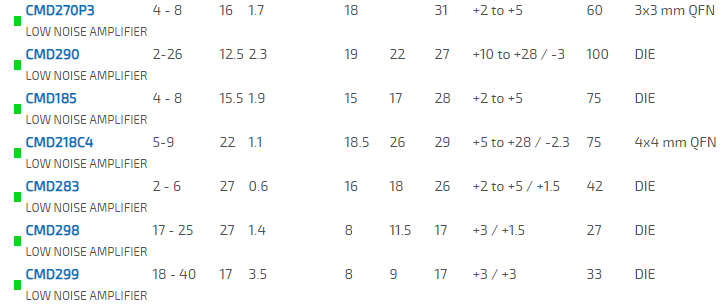

| Model | Frequency (GHz) | Gain (dB) | Noise Figure (dB) | Phase (dBc/Hz) | Output P1dB (dBm) | Output Psat (dBm) | Output OIP3 (dBm) | Bias Voltage Vdd/Vgg (V) | Bias Current (mA) | Package |
|-------------|-----------------|-----------|-------------------|----------------|------------------|------------------|------------------|------------------------|-------------------|--------------|
| CMD228 | 2 - 6 | 30 | 1.2 | 12 | 14 | 23 | +3 to +5 / +3 to +5 | 45 | DIE |
| CMD228P4 | 2 - 6 | 28 | 1.5 | 13 | 14 | 25 | +3 to +5 / +3 to +5 | 45 | 4x4 mm QFN |
| CMD185P3 | 4 - 8 | 15.5 | 1.9 | 15 | 17 | 29 | +2 to +5 | 75 | 3x3 mm QFN |
| CMD219 | 4 - 8 | 23 | 1.0 | 18 | 26 | 28 | +5 to +28 / -2.3 | 75 | DIE |
| CMD219C4 | 4 - 8 | 22.5 | 1.0 | 17 | 25.5 | 28 | +5 to +28 / -2.3 | 75 | 4x4 mm QFN |
| CMD119P3 | 5 - 9 | 22 | 1.2 | 11 | 13 | 21 | +2 to +4.5 | 30 | 3x3 mm QFN |
| CMD218 | 5 - 9 | 22 | 1.1 | 21.5 | 26 | 30 | +5 to +28 / -2.7 | 80 | DIE |
| CMD229 | 5 - 11 | 27 | 1.4 | 13 | 15 | 25 | +3 to +5 / +3 to +5 | 45 | DIE |
| CMD229P4 | 5 - 11 | 26 | 1.5 | 13 | 15 | 24 | +3 to +5 / +3 to +5 | 45 | 4x4 mm QFN |
| CMD132 | 5 - 11 | 23 | 1.4 | 10 | 13 | 22 | +2 to +4.5 | 30 | DIE |
| CMD132P3 | 5 - 11 | 21 | 1.4 | 10 | 13 | 22 | +2 to +4.5 | 30 | 3x3 mm QFN |
| CMD186P3 | 6 - 11 | 18.5 | 2.1 | 17 | 20 | 28 | +2 to +5 | 78 | 3x3 mm QFN |
| CMD157 | 6 - 18 | 26 | 1.5 | 11 | 13.5 | 23 | +2 to +4.5 | 52 | DIE |
| CMD157P3 | 6 - 18 | 26 | 1.5 | 11 | 13.5 | 23 | +2 to +4.5 | 52 | 3x3 mm QFN |
| CMD194C3 | 6 - 20 | 20 | 2.0 | 15.5 | 16.5 | 26 | +2 to +5 | 120 | 3x3 mm QFN |
| CMD167P3 | 8 - 16 | 16 | 1.8 | 11 | 13 | 23 | +2 to +4 | 50 | 3x3 mm QFN |
| CMD161 | 10 - 14 | 19 | 1.05 | 5 | 12 | | +2 to +4 / +1.5 | 20 | DIE |
| CMD189P3 | 10 - 14 | 19 | 1.4 | 4 | 7 | 13 | +1 to +4 / +1.5 | 20 | 3x3 mm QFN |
| CMD560-11-7009 | 5.3 ~ 5.9 | 0.9 | | 27 | 30 | 50 | -8 ~ +15 | 50 | |

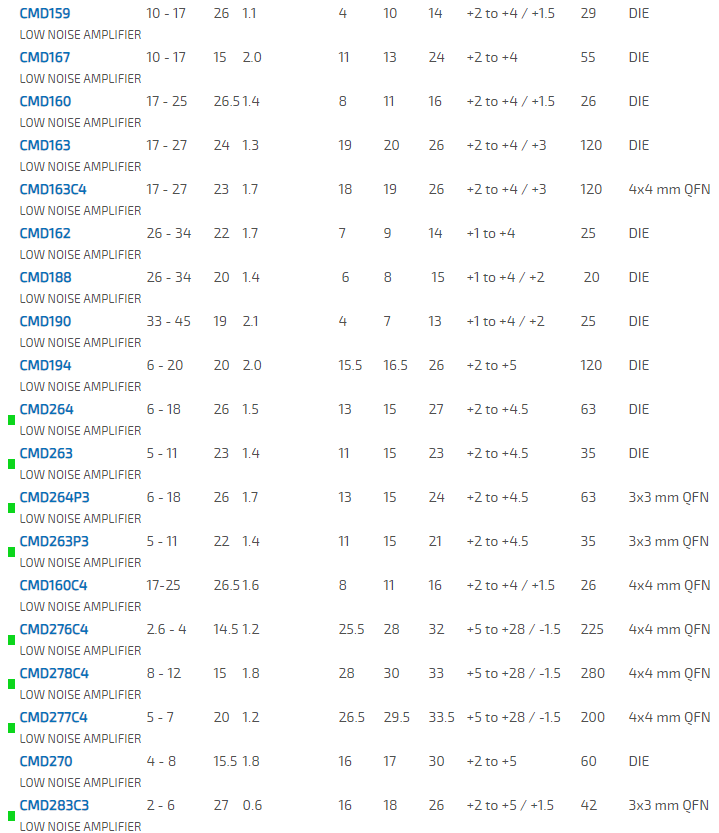

| Model | Frequency (GHz) | Gain (dB) | Noise Figure (dB) | Phase (dBc/Hz) | Output P1dB (dBm) | Output Psat (dBm) | Output OIP3 (dBm) | Bias Voltage Vdd/Vgg (V) | Bias Current (mA) | Package |
|-------------|-----------------|-----------|-------------------|----------------|------------------|------------------|------------------|------------------------|-------------------|--------------|
| CMD159 | 10 - 17 | 26 | 11 | 4 | 10 | 14 | +2 to +4 / +15 | 29 | DIE |
| CMD167 | 10 - 17 | 15 | 2.0 | 11 | 13 | 24 | +2 to +4 | 55 | DIE |
| CMD160 | 17 - 25 | 26.5 | 1.4 | 8 | 11 | 16 | +2 to +4 / +15 | 26 | DIE |
| CMD163 | 17 - 27 | 24 | 1.3 | 19 | 20 | 26 | +2 to +4 / +3 | 120 | DIE |
| CMD163C4 | 17 - 27 | 23 | 1.7 | 18 | 19 | 26 | +2 to +4 / +3 | 120 | 4x4 mm QFN |
| CMD162 | 26 - 34 | 22 | 1.7 | 7 | 9 | 14 | +1 to +4 | 25 | DIE |
| CMD188 | 26 - 34 | 20 | 1.4 | 6 | 8 | 15 | +1 to +4 / +2 | 20 | DIE |
| CMD190 | 33 - 45 | 19 | 2.1 | 4 | 7 | 13 | +1 to +4 / +2 | 25 | DIE |
| CMD194 | 6 - 20 | 20 | 2.0 | 15.5 | 16.5 | 26 | +2 to +5 | 120 | DIE |
| CMD264 | 6 - 18 | 26 | 1.5 | 13 | 15 | 27 | +2 to +4.5 | 63 | DIE |
| CMD263 | 5 - 11 | 23 | 1.4 | 11 | 15 | 23 | +2 to +4.5 | 35 | DIE |
| CMD264P3 | 6 - 18 | 26 | 1.7 | 13 | 15 | 24 | +2 to +4.5 | 63 | 3x3 mm QFN |
| CMD263P3 | 5 - 11 | 22 | 1.4 | 11 | 15 | 21 | +2 to +4.5 | 35 | 3x3 mm QFN |
| CMD160C4 | 17 - 25 | 26.5 | 1.6 | 8 | 11 | 16 | +2 to +4 / +15 | 26 | 4x4 mm QFN |
| CMD276C4 | 2.6 - 4 | 14.5 | 1.2 | 25.5 | 28 | 32 | +5 to +28 / -1.5 | 225 | 4x4 mm QFN |
| CMD278C4 | 8 - 12 | 15 | 1.8 | 28 | 30 | 33 | +5 to +28 / -1.5 | 280 | 4x4 mm QFN |
| CMD277C4 | 5 - 7 | 20 | 1.2 | 26.5 | 29.5 | 33.5 | +5 to +28 / -1.5 | 200 | 4x4 mm QFN |
| CMD270 | 4 - 8 | 15.5 | 1.8 | 16 | 17 | 30 | +2 to +5 | 60 | DIE |
| CMD283C3 | 2 - 6 | 27 | 0.6 | 16 | 18 | 26 | +2 to +5 / +1.5 | 42 | 3x3 mm QFN |
| CMD270P3 | 4 - 8 | 16 | 1.7 | 18 | 31 | | +2 to +5 | 60 | 3x3 mm QFN |
| CMD290 | 2 - 26 | 12.5 | 2.3 | 19 | 22 | 27 | +10 to +28 / -3 | 100 | DIE |
| CMD185 | 4 - 8 | 15.5 | 1.9 | 15 | 17 | 28 | +2 to +5 | 75 | DIE |
| CMD218C4 | 5 - 9 | 22 | 1.1 | 18.5 | 26 | 29 | +5 to +28 / -2.3 | 75 | 4x4 mm QFN |
| CMD283 | 2 - 6 | 27 | 0.6 | 16 | 18 | 26 | +2 to +5 / +1.5 | 42 | DIE |
| CMD298 | 17 - 25 | 27 | 1.4 | 8 | 11.5 | 17 | +3 / +1.5 | 27 | DIE |
| CMD299 | 18 - 40 | 17 | 3.5 | 8 | 9 | 17 | +3 / +3 | 33 | DIE |
